Specs at a glance
Accuracy: +/- 0.05 K (refering to delta-T)
Response time: depending on configuration
t50 = 10 s
t90 = 31 s
Max. process pressure (static): at 20 °C: 50 bar (725 psi)
Operating temperature range: PT 100:
-50 °C …400 °C
(-58 °F …752 °F)
Max. immersion length on request: up to 4.000,00 mm (157,48”)
—————————————-

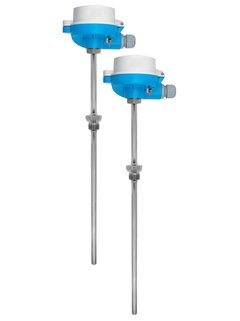

Field of application
Endress Hauser’s
The thermometer is mainly used in the chemical industry but also finds its use in other branches. The device is used for high-precision measurement of temperature
differences with matched sensor pairs. A variety of dimensions offers flexible application possibilities.
• Universally usable for thermal energy measurements
• Measuring range: -50 to +400 °C (-58 to +752 °F)
• Paired in the range: 0 to +120 °C (+32 to +248 °F), Deviation of the sensors: ± 0.05 K
• Paired in the range: –40 to 0 °C (-40 to 32 °F), Deviation of the sensors: ± 0.1 K
• Protection class: up to IP68
