Specs at a glance
Max. process pressure (static): Depending on configuration up to 100 bar
Maximum standard immersion length: 4.500 mm (177″)
Max. immersion length on request: 4.500 mm (177″)
—————————————-
Field of application
Endress Hauser’s

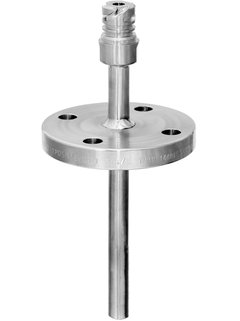

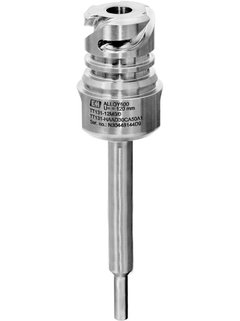

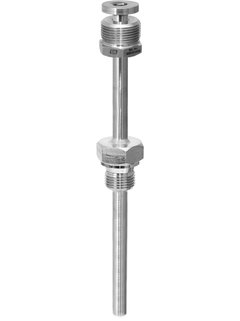

This thermowell designed according to DIN 43772 guarantees a high resistance to most industrial process environments. It is made from pipe or tube and is available in a wide range of diameters and materials. A specially designed thermowell tip ensures fast response times for a more efficient process control. Oversheaths in PTFE or tantalum can withstand extremely corrosive process conditions. It is offered with a variety of process connections: flanges, threads, weld-in or compression fittings.
• Protects the temperature sensor against physical and chemical stress
• High robustness for challenging process conditions
• Pressure range: up to 100 bar (1450 psi)
• For use in pipes, containers or tanks
• Improved ease of maintenance (sensor replacement without process shutdown) and recalibration of the measuring point
