Specs at a glance
Accuracy: class 2 acc. to IEC 60584
ASTM E230 and ANSI MC 96.1
Response time: depending on configuration:
TC:
t50 = 2 s
t90 = 5 s
RTD:
t50 = 0,8s
t90 = 2s
Max. process pressure (static): at 20 °C: 100 bar (1450 psi)
Operating temperature range: Type K:
max. 1.150 °C
(max. 2.102 °F)
Type J:
max. 920 °C
(max. 1.688 °F)
Type N:
max. 1.150 °C
(max. 2.102 °F)
Type T:
max. 370 °C
(max. 698 °F)
Max. immersion length on request: up to 30.000,00 mm (1181”)
—————————————-
Field of application

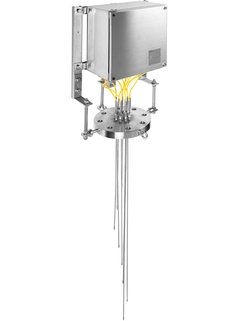

By complying with the highest safety standards, iTHERM TMS01 can be customized for various applications. Bendable into a 3D layout, it provides a complete temperature profile just by using one nozzle. The device is configurable with or without thermowells for optimal response times, mechanical strength or sensors replaceability. It is available either with TC or RTD technology or with our iTHERM StrongSens.
• Petrochemical industry
• Oil & Gas industry
• Heavy Chemical processes
