Specs at a glance
Accuracy: class 1 acc. to IEC 60584
class Special ASTM E230 and ANSI MC 96.1
IEC60751 Class A
IEC60751 Class AA
Response time: depending on configuration:
TC:
t50 = 21 s
t90 = 52 s
RTD:
t50 = 42 s
t90 = 108 s
Max. process pressure (static): at 20 °C: 240 bar (3481 psi)
Operating temperature range: Type K:
max. 1.070 °C
(max. 1.958 °F)
Type J:
max. 520 °C
(max. 968 °F)
Type N:
max. 1.100 °C
(max. 2.012 °F)
Pt100 WW:
-200…600 °C
(-328…1.112 °F)
Pt100 TF:
-50…400 °F
(-58…752 °F)
Max. immersion length on request: up to 15.000,00 mm (590”)
—————————————-
Field of application
Endress Hauser’s

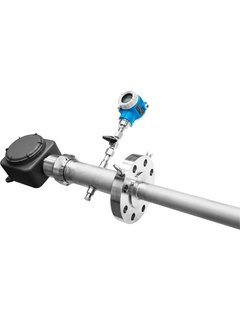

The iTHERM TMS12 MultiSens Linear multipoint thermometer for oil & gas and chemical applications can be customized for various scenarios in compliance with the highest safety standards. It increases process safety by creating detailed linear temperature profiles and features a diagnostic chamber to contain and monitor leakages through the primary seals. Easy process integration reduces installation time and thus maximizes plant availability.
• Oil & Gas industry
• Heavy chemical processes
• Petrochemical industry
