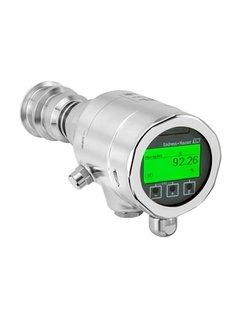

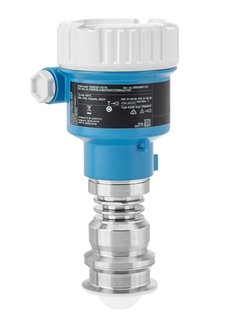

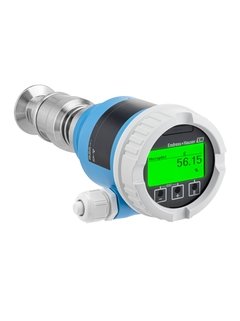

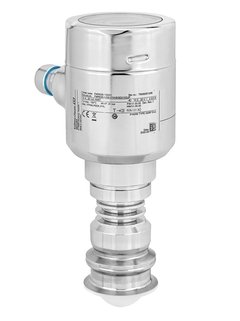

Micropilot FMR63B – 80 GHz radar sensor

Specs at a glance

Accuracy: +/-1 mm (0.04 in)
Process temperature: -40 °C … +200 °C (-40 °F … +392 °F)
Process pressure / max. overpressure limit: Vacuum…25 bar (363 psi)
Max. measurement distance: 80 m (262 ft)
Main wetted parts: PEEK or PTFE

—————————————-

Field of application

Micropilot FMR63B is part of the new generation of 80 GHz radar sensors. Thanks to its complete hygienic design it is suitable for continuous non-contact level measurement in hygienic applications. Wizards guide users through commissioning, proof tests and verification of the devices and thus guarantee a simple operation. Heartbeat Technology offers verification and monitoring functions to identify anomalies or checking the measurement accuracy.

• Process connections: M24 adapters and hygienic process connections
• Temperature: –40 to +200 °C (-40 to 392° F)
• Pressure: –1 to +25 bar (-14.5 to +362.6 psi)
• Maximum measuring range: 80 m (164 ft)
• Accuracy: ±1 mm (0.04 in)
• W-band: 80 GHz
• EHEDG, 3-A, ASME BPE, International explosion protection certificates, 5- or 10-point linearity protocol
