Specs at a glance
Max. measurement error: Volume flow: ±0.5 % o.r. ± 2 mm/s (0.08 in/s)
Measuring range: 0.06 dm³/min to 300 m³/h (0.015 to 80 gal/min)
Medium temperature range: –20 to +150 °C (–4 to +302 °F)
Max. process pressure: PN 40, Class 150, 20K
Wetted materials: Liner: PFA
Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum
Process Connections: stainless steel, 1.4404 (F316L); PVDF; PVC adhesive sleeve
Seals: O-ring seal (EPDM, FKM, Kalrez), aseptic molded seal (EPDM, FKM, silicone)
Grounding Rings: stainless steel, 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); tantalum
—————————————-
Field of application
Endress Hauser’s

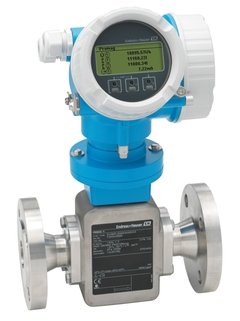

Promag H is the preferred sensor for applications with highest requirements in the chemical and life sciences industries. With its genuine loop-powered technology, Promag H 200 enables cost-effective and seamless integration into existing infrastructures. It offers highest operational safety in hazardous areas thanks to its intrinsically safe design (Ex ia). Heartbeat Technology enables process safety at all times.
• The measuring principle is virtually independent of pressure, density, temperature and viscosity
• Dedicated to the measurement of the smallest flow quantities
• Liner made of PFA
• Sensor housing made of stainless steel
• Various electrode materials available
• Loop-powered technology
• High ingress protection: IP69
• Plant safety: worldwide approvals (SIL, Haz. area)
Device properties
