Specs at a glance
Max. measurement error: Mass flow (liquid): ±0.10 %
Volume flow (liquid): ±0.10 %
Mass flow (gas): ±0.50 %
Density (liquid): ±0.0005 g/cm³
Measuring range: 0 to 180 000 kg/h (0 to 6600 lb/min)
Medium temperature range: –50 to +150 °C (–58 to +302 °F)
Max. process pressure: PN 100, Class 600, 63K
Wetted materials: Measuring tube: Titanium grade 9
Connection: Titanium grade 2
—————————————-
Field of application
Endress Hauser’s

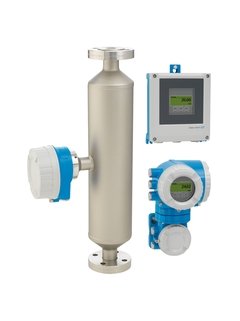

The straight single-tube design of Promass I provides in-line viscosity measurement in addition to mass flow, density and temperature measurement. With its innovative remote transmitter Promass I 500 maximizes installation flexibility and operational safety in demanding environments. Heartbeat Technology enables measurement reliability and compliant verification.
• Measuring principle operates independently of physical fluid properties such as viscosity or density
• Measuring liquids and gases in applications requiring low pressure loss and gentle fluid treatment
• Straight, easy-to-clean single-tube system
• TMB technology
• Measuring tube made of Titanium
• Remote version with up to 4 I/Os
• Backlit display with touch control and WLAN access
• Standard cable between sensor and transmitter
