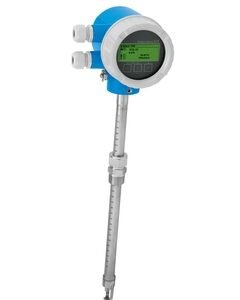

Proline Prosonic Flow 93T ultrasonic flowmeter

Specs at a glance

Max. measurement error: +/-2.0 %
Measuring range: 0….452’389 m3/h
Medium temperature range: DN 15…65
-40…+150°C
(-40…+302°F)
DN 50…300
-40…+170°C
(-40…+338°F)
DN 100…4000
-40…+80°C
(-40…+176°F)
Max. process pressure: No limit

—————————————-

Field of application

The portable ultrasonic flowmeter Prosonic Flow 93T is designed for temporary monitoring and test measurements with clamp on sensors. It is operated independently of the mains power using a battery. The Prosonic Flow 93T is ideal for conducting verification measurements at existing flow metering points.

• Ideal solution for temporary use everywhere precise measurement or verification is required
• Can be used with all metal and plastic pipes lined or unlined and with composite pipes
• Suitable for pipe diameters from DN 15 to 4000 (½ to 160″)
• Suitable for fluid temperatures ranging from –40 to +170 °C (–40 to +338 °F)
