Specs at a glance
Accuracy: +/- 6 mm (0.24 in)
Process temperature: -60…+400°C
(-76…+752°F)
Process pressure / max. overpressure limit: Vacuum…160 bar
(Vacuum…2320 psi)
Max. measurement distance: Standard: 20 m (65 ft)
Planar antenna in stilling well: 38 m (125 ft)
Main wetted parts: 316L
—————————————-
Field of application
Endress Hauser’s

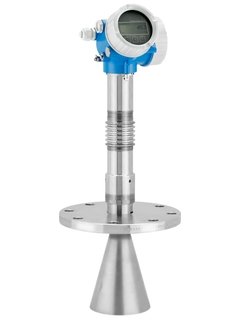

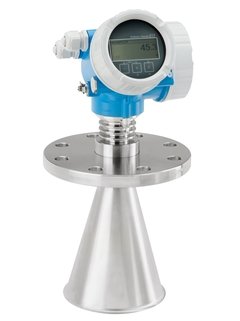

Micropilot FMR54 is prepared for the use in high temperature and high pressure applications and with the specially designed planar antenna it is particularly suited for stilling well applications. The FMR54 free space radar is used for continuous, non-contact level measurement of liquids, pastes and slurries. The measurement is not affected by changing media, temperature changes, gas blankets or vapors.
• Process connection: Flange
• Temperature: -196 to +400°C (-76 to +752°F)
• Pressure: -1 to +160bar (-14.5 to +2,320psi)
• Maximum measuring range: 20m (66ft)
• Accuracy: ±6mm
• C-band: 6GHz
• International explosion protection certificates, overfill prevention WHG, SIL, 5-point linearity protocol
