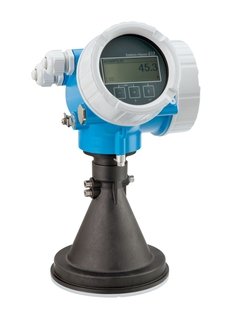

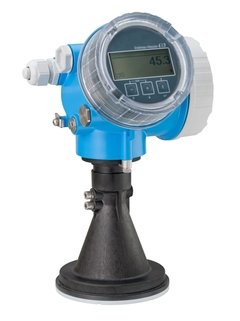

Radar measurement Time-of-Flight Micropilot FMR56 | Endress Hauser

Specs at a glance

Accuracy: +/- 3 mm (0.12 in)
Process temperature: -40 °C…+80 °C
(-40 °F…+176 °F)
Process pressure / max. overpressure limit: Vacuum…3 bar
(Vacuum…43.5 psi)
Max. measurement distance: 30 m (98 ft)
Main wetted parts: PP, UP

—————————————-

Field of application

Endress Hauser’s

Micropilot FMR56 is particularly designed for light-duty process conditions as they occur in silos or bins for solids. Micropilot free space radar is used for continuous,
non-contact level measurement in powdery to granular bulk solids. Dust, filling noises, temperature layers and gas layers do not affect the measurement.

• Process connections: Mounting bracket or slip-on flange
• Temperature: -40 to +80°C (-40 to +176°F)
• Pressure: -1 to +3bar (-14.5 to +43.5psi)
• Maximum measuring range: 30m (98ft)
• K-band: 26GHz
• International explosion protection certificates, SIL, 5-point linearity protocol
