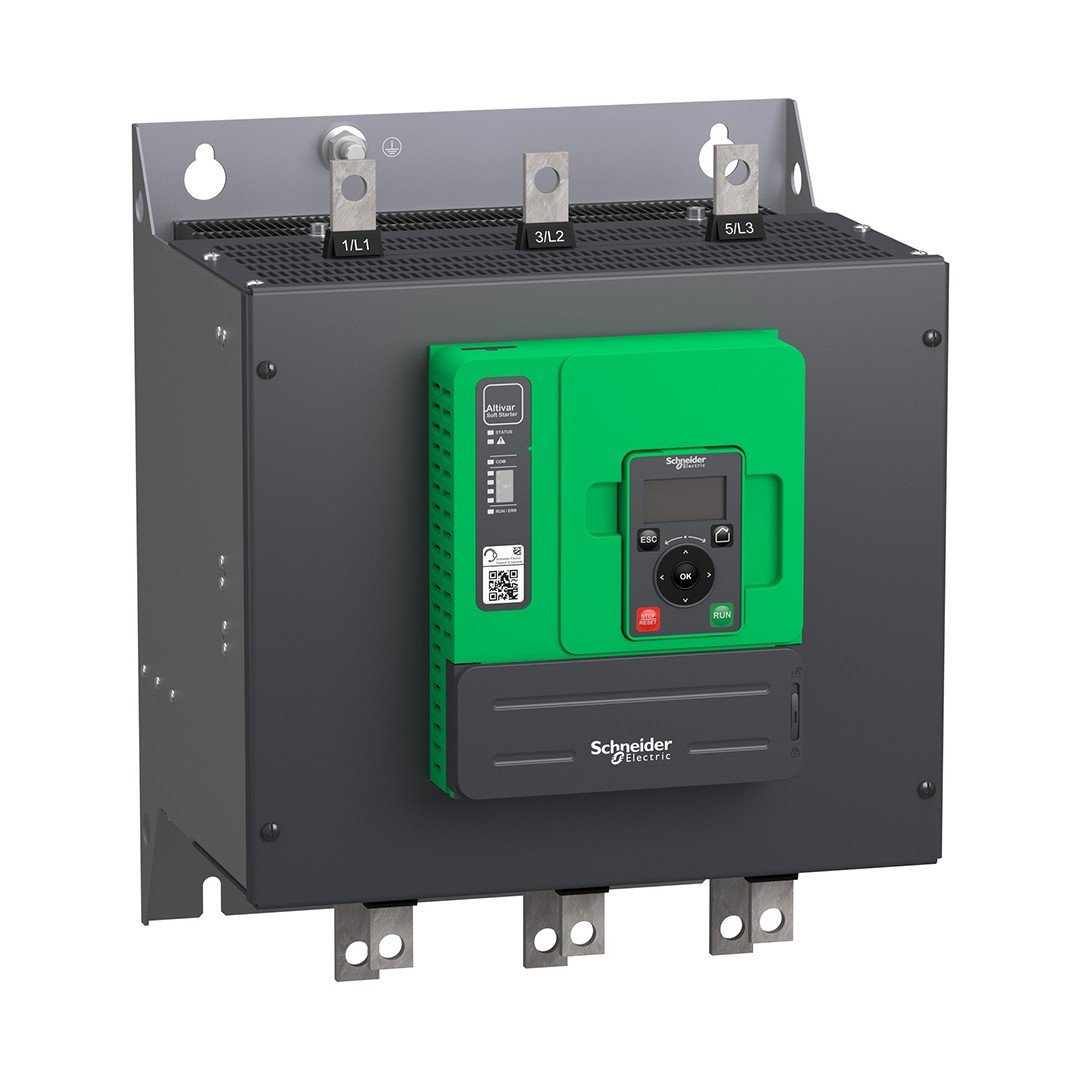

Schneider ATS480C25Y asynchronous motor 208-690V AC 250A soft road donor

Product series
:
Altivar Soft Starter ATS480
Product or component type
:
Soft road
Product destination
:
Asynchronous motors
Product group
:
ATS480
Network Network of Phase
:
3 phases
Use category
:
AC-3A
AC-53A
UE power supply voltage
:
208 … 690 V – 15 … 10
Power supply frequency
:
50 … 60 Hz – 20 … 20
[IE] Nominal Working Current
:
Normal Duty: 250,0 A 40 C)
IP protection degree
:
IP00
Motor Power KW
:
Normal requirement on a 230 V engine supply line in 75.0 kW
Heavily required on the 230 V engine supply line in 55.0 kW
400 V engine feeding line in 132.0 kW
400 V motor feeding line in 110.0,0 kW
Normal requirement in the 440 V engine feeding line of 132.0 kW
440 V engine feeding line in 110.0,0 kW
Normal requirement on a 500 V engine supply line in 160.0,0 kW
Heavily required on a 500 V engine supply line in 132.0 kW
Normal requirement in 525 V engine feeding line
525 V motor feeding line in 132.0 kW
Normal requirement in the 660 V engine supply line in 220,0 kW
Heavily conditioned on the 660 V engine supply line in 160.0,0 kW
Normal requirement in 690 V engine feeding line
690 V motor feeding line in 200.0 kW
Normal requirement for 230 V engine delta terminals in 132.0 kW
230 V engine delta terminals in 110,0 kW
Normal requirement for 400 V engine delta terminals per 220.0 kW
400 V engine delta terminals in 160.0,0 kW
Motor Power HP
:
208 V Normal requirement in 75.0 hp
208 V heavy condition for 60.0 HP
230 V in 100.0 hp
230 V heavy condition for 75.0 hp
460 V Normal requirement in 200.0 hp
460 V heavy condition for 150.0 hp
575 V Normal condition for 250.0 HP
575 V heavy condition in 200.0 hp
Option card
:
Profibus DP v1 for communication module
Profinet for communication module
MODBUS TCP Ethernet IP for the Communication Module
Canopen Daisy Chain for the Communication Module
Canopen Sub-D for the Communication Module
Canopen Open Style for Communication Module
Complementary features
Device connection
:
In the motor feeding line
Motor Delta Terminals
[USA] control circuit voltage
:
110 … 230 V AC 50 60 Hz – 15 … 10
Visible power
:
0,106 kva
Motor Thermal Protection Class
:
Class 10E
Protection type
:
Phase error: line
Integrated thermal protection: engine
Thermal protection: roadwater
Current Overload: Motor
Underload: Motor
Excessive Starting Time, Locked Rotor: Motor
Motor Phase Loss: Motor
Line Feeding Phase Loss: Line
Line Feeding Phase Loss: Motor
Thermal protection: engine
(5 x ie maximum) current limiting
:
150 700
[IN] RED CURRENT PWR LOSS SPECİFCTN
:
250,0 A
Loss of power static current independent
:
25.0 W
Loss of power per device current dependent
:
675,0 W
Standards
:
EN IEC 60947-4-2
Ul 60947-4-2
IEC 60664-1
Product Certificates
:
CE
Culus
CCC
Ukca
Rcm
Eac
DNV
ABS
BV
CCS
Marking
:
CE
CCC
Ukca
Eac
Rcm
Culus
Control circuit voltage
:
24 V DC
Number of digital inputs
:
4
Entrance compatibility
:
STOP: Digital Entry Level 1 PLC
RUN: Digital Entry Level 1 PLC
DI3: Digital Entry Level 1 PLC
DI4: Digital Entry Level 1 PLC
Digital entrance logic
:
Programmable digital input 0: 5 V
Relay output number
:
3
Relay output type
:
Relay outputs R1A 1 NA
Relay outputs r1b 1 na
Relay outputs RIC No NC Programmable
Minimum switching current
:
Relay outputs for 24 V DC
Maximum switching current
:
Relay outputs 2 A -DE 250 V AC
Relay outputs 2 A -DE 30 V DC
Relay outputs
Digital output number
:
2
Digital output type
:
(DQ1) Programmable Digital Output 30 V
(DQ2) Programmable Digital Output 30 V
Number of analog inputs
:
1
Analog output number
:
1
Analog output type
:
Current output aq1: 0 … 20 ma or 0 … 10 V, impedance 500 ohm
Communication Port Protocol
:
Modbus Series
Connector type
:
1 RJ45
Communication data connection
:
Sherry
Physical interface
:
2 wire RS 485
Transmission rate
:
1200 … 256000 bit S
Transmission frame
:
Rtu
Data format
:
8 bit, configurable single, double or without parity
Polarization type
:
Modbus series for no impedance
Number of Addresses
:
Modbus series for 0 227
Access method
:
Slave Modbus Series
Usable Function
:
External Bypass Control
Pre-heart
Smoke Extraction
MULTI-MOTOR CASCADE
Second engine set
User Management
Ports and Services Hardening
Security Event Logging
Cybersecure firmware update
Single Direction
Working position
:
Vertical – 10 degrees
Height
:
380.0 mm
Width
:
320.0 mm
Depth
:
277.0 mm
Product weight
:
18.2 kg
