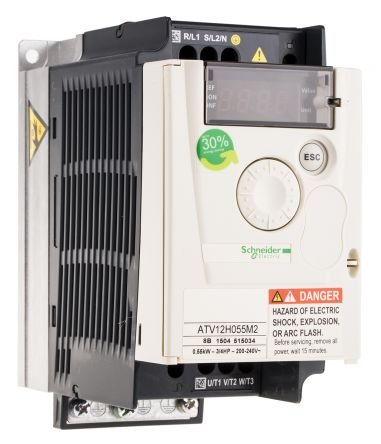

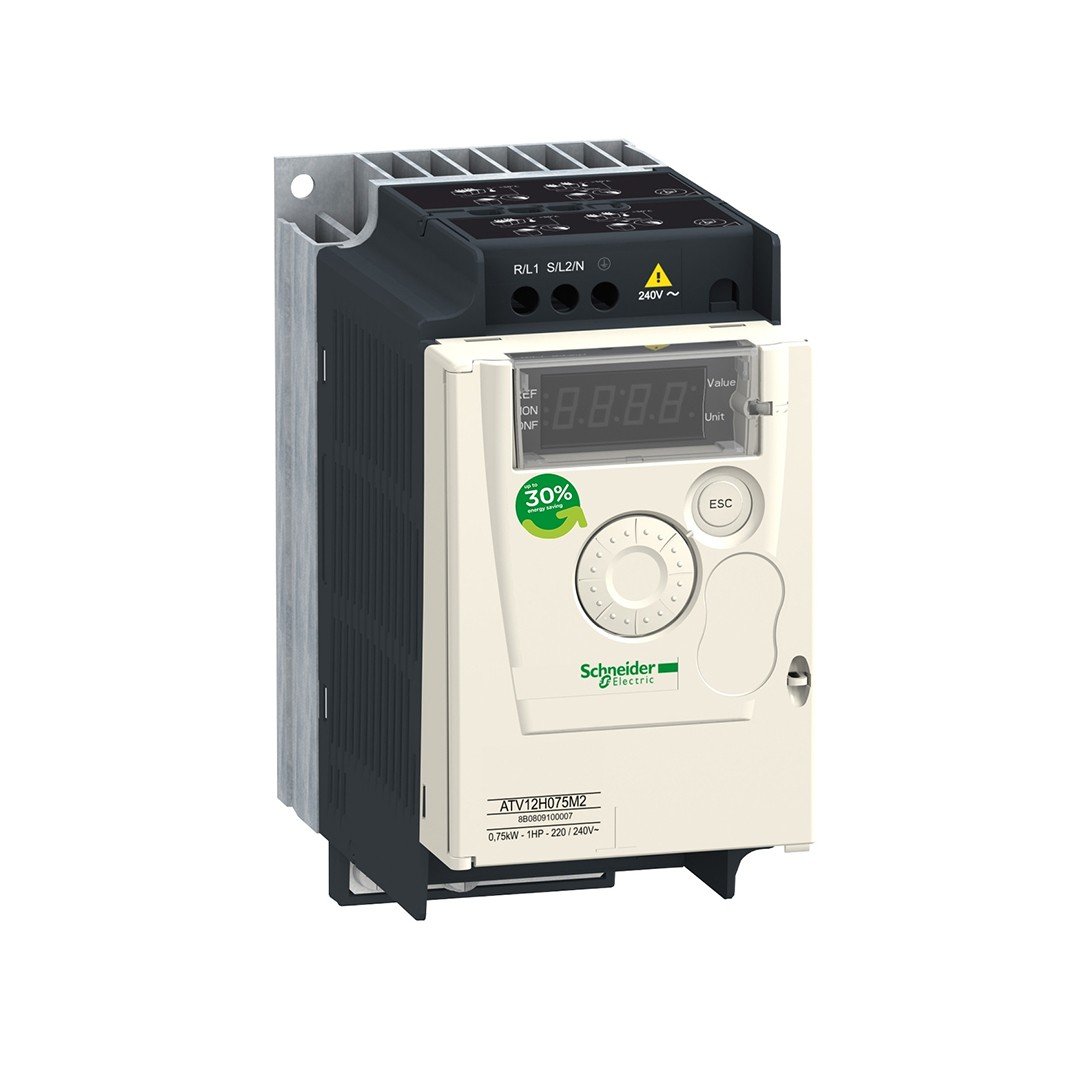

Schneider ATV12H055m2 0.55KW speed control device

Product Features
Product destination
:
Asynchronous motors
Component name
:
ATV12
Internal fan
:
Without
Network Network of Phase
:
1 phase
Motor Power KW
:
0.55 kW
Motor Power HP
:
0.75 hp
Line flow
:
8 A -DE 200 V
6.7 A -DE 240 V
Speed ​​range
:
1 20
IP protection degree
:
IP20 without a closing plate on the top piece
Product series
:
Altivar 12
Product or component type
:
Variable Speed ​​Driver
Product Special Application
:
Simple machine
Communication Port Protocol
:
Modbus
[US] Nominal Nutrition Voltage
:
200 … 240 V – 15 … 10
EMC filter
:
Integrated
Complementary features
Feeding frequency
:
50 60 Hz – 5
Type of the connector
:
Modbus for 1 RJ45 (front percentage)
Physical interface
:
Modbus for 2 stringed RS 485
Service Framework
:
Modbus for RTU
Training speed
:
4800 bit SN
9600 bit S
19200 bit S
38400 bit sec
Number of Addresses
:
Modbus for 1 247
Communication service
:
Read waiting records (03) 29 Word
Write Single Records (06) 29 Word
Write Multiple Records (16) 27 Word
Read Multiple Records Write (23) 4 4 Word
Read Device Definition (43)
Continuous output current
:
3.5 a -de 4 khz
Maximum temporary current
:
60 s for 5.3 A
Speed ​​control device output frequency
:
0.5 400 Hz
Braking torque
:
Without the braking resistance up to 70 of the nominal motor torque
Output voltage
:
200 … 240 V 3 phase
Electric connection
:
Terminal, Clamping Capacity: 3.5 mm², AWG 12 (L1, L2, L3, U, V, W, PA, PC)
Squeezing torque
:
0.8 N.M
Insulation
:
Electricity between power and control
Supply
:
Internal feeding for reference potentiometer: 5 V DC (4,75 5.25 V), 10 MA, protection type: overload and short circuit protection
Internal feeding for logic inputs: 24 V DC (20.4 28.8 V), 100 MA, Protection Type: Overload and Short Circuit Protection
Analog input type
:
Configurated current AI1 0 … 20 MA 250 OHM
Configurated voltage AI1 0 … 10 V 30 Kohm
Configurated voltage AI1 0 … 5 V 30 Kohm
Digital entry type
:
Programmable LI1 … LI4 24 V 18 … 30 V
Digital entrance logic
:
Negative Logic (Block), 16 V (Case 0), 10 V (Case 1), Integration Impedance 3.5 Kohm
Positive Logic (Source), 0 … 5 V (Status 0), 11 V (Status 1)
Sampling time
:
20 ms, tolerance – Logic input for 1 ms
Analog input for 10 ms
Linearity error
:
Analog input for maximum value – 0.3
Analog output type
:
AO1 Software-Related Voltage: 0 … 10 V, Impedance: 470 ohm, resolution 8 bit
AO1 Software-Related Current: 0 … 20 MA, Impedance: 800 ohm, resolution 8 bit
Digital output type
:
Lojic output lo-
Protected Relay Output R1A, R1B, R1C 1 K a
Minimum switching current
:
Logic relay for 24 V DC
Maximum switching current
:
2 A 250 V AC Inductive Cos Phi 0.4 L R 7 MSN Logic Relay
2 A 30 V DC Inductive Cos Phi 0.4 L R 7 MSN Logic Relay
3 A 250 V AC resistant cos phi 1 l R 0 msn logic relay
4 A 30 V DC Resistant Cos Phi 1 l R 0 Msn Logic Relay
Braking until it stops
:
With DC Injection, 30 S
Frequency resolution
:
Analog input: Converter A D, 10 bit
Screen Unit: 0.1 Hz
Time constant
:
20 ms – 1 ms for reference change
Quantity
:
Basis
SPECIAL APPLICATION
:
Commercial Equipment
Variable Speed ​​Drive Application Selection
:
Mixer Commercial Equipment
Other applications Commercial Equipment
IRONING TEXTILE
Motor road
:
Speed ​​control device
Number of digital inputs
:
4
Digital output number
:
2
Number of analog inputs
:
1
Analog output number
:
1
Asynchronous motor control profile
:
Voltage frequency ratio (V F)
Square voltage frequency ratio
Sensor -free flux vector control
Temporary Moment
:
Nominal motor torque depending on the 150 170 drive value and motor type
Acceleration and slowing ramps
:
Linear between 0 – 999.9
S
U
Motor slip compensation
:
Available in the factory
Adjustable
Switching frequency
:
2 … 16 khz adjustable
4 … 16 kHz depreciation factor
Nominal switching frequency
:
4 KHz
Possible line ISC
:
1 ka
Protection type
:
Line feeding excess voltage
Low Feeding Low voltage
Over Current Between Output Phase and Soil
Protection against overheating
Short circuit between motor phases
Against the Loss of Entry Phase in Trifase
I²T value Thermal motor protection over the driver with continuous calculation of
Quantity per set
:
1 set
Width
:
72 mm
Height
:
143 mm
Depth
:
131.2 mm
Product weight
:
0.8 kg
