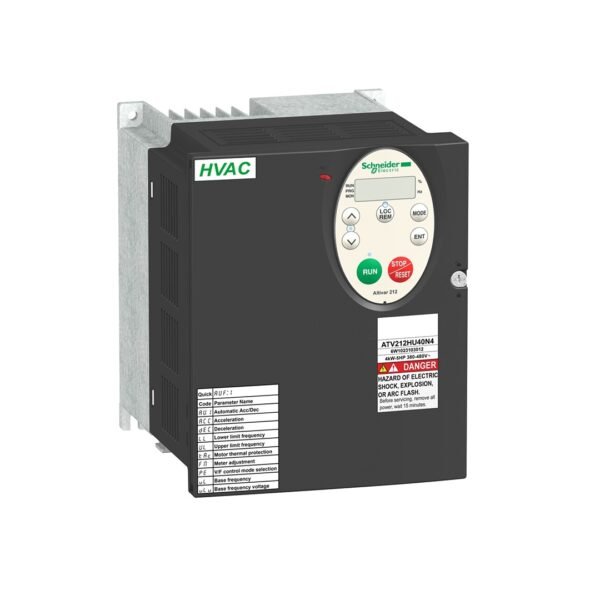

Schneider ATV212HU40N4 4KW 480V speed control device

Product group
:
ATV212
Product destination
:
Asynchronous motors
Network Network of Phase
:
3 phases
Motor Power KW
:
4 KW
Motor Power HP
:
5 HP
Feeding voltage limits
:
323 528 V
Feeding frequency
:
50 … 60 Hz – 5 … 5
Line flow
:
6.4 A -DE 480 V
8.1 A -DE 380 V
Product series
:
Altivar 212
Product or component type
:
Variable Speed ​​Driver
Product Special Application
:
Pumps and ventilation in HVAC
Communication Port Protocol
:
Metasys n2
Bacnet
Apogee fln
Modbus
Guild
[US] Nominal Nutrition Voltage
:
380 … 480 V – 15 … 10
EMC filter
:
Class C2 EMC filter integrated
IP Protection Class
:
IP21
Complementary features
Visible power
:
380 V in 6.9 kva
Continuous output current
:
9.1 A -DE 380 V
9.1 A -DE 460 V
Maximum temporary current
:
60 s for 10 A
Speed ​​control device output frequency
:
0.5 200 Hz
Speed ​​range
:
1 10
Speed ​​accuracy
:
Nominal slip – 10 of 0.2 tn – tn
Local signaling
:
DC DATA ENERGY: 1 LED (Red)
Output voltage
:
power feeding voltage
Insulation
:
Electricity between power and control
Type of the cable
:
Assembly without Kit: 1 wire (s) IEC cable -45 C, copper 90 C xlpe epr
Mounting Kitle: 1 Wire (s) IEC cable -45 C, copper 70 C PVC
With a UL Type 1 Kit: 3 Wire (s) UL 508 cable -40 C, copper 75 C PVC
Electric connection
:
VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES: Terminal 2.5 mm² AWG 14
L1 R, L2 S, L3 T: Terminal 6 mm² AWG 10
Squeezing torque
:
1,3 N.M, 11.5 lb.in (L1 R, L2 S, L3 T)
0.6 N.M (VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES)
Supply
:
Internal feeding for reference potentiometer (1 – 10 kohm): 10.5 V DC – 5, 10 A, protection type: overload and short circuit protection
Internal Feeding: 24 V DC (21 27 V), 200 A, Protection Type: Overload and Short Circuit Protection
Sampling time
:
2 ms – 0.5 msn f hidden
2 ms – 0.5 msn r hidden
2 ms – 0.5 msn res hidden
3.5 ms – 0.5 msn VIA analogue
22 MS – 0.5 MSN VIB analogue
Response time
:
FM 2 MS, Tolerance – Analog Fights for 0.5 MSN
FLA, FLC 7 MS, Tolerance – Hidden Foots for 0.5 MSN
FLB, FLC 7 MS, Tolerance – Hidden Foots for 0.5 MSN
RY, RC 7 MS, Tolerance – Hidden Foots for 0.5 MSN
Truth
:
– 0.6 (VIA) 60 C for temperature change
– 0.6 (VIB) 60 C for temperature change
– 1 (FM) 60 C for temperature change
Linearity error
:
VIA: Maximum value – Login for 0.15
VIB: Entry for the maximum value – 0.15
FM: – Output for 0.2
Analog output type
:
FM Key-Released Voltage 0 … 10 V DC, Impedance: 7620 OHM, resolution 10 bit
FM Key-Released Current 0 … 20 MA, Impedance: 970 ohm, resolution 10 bit
Digital output type
:
Configurable Relay Logiki: (FLA, FLC) Na – 100000 Cycles
Configurable Relay Logiki: (FLB, FLC) NK – 100000 CYCLES
Configurated Relay Logiki: (RY, RC) Na – 100000 Cycles
Minimum switching current
:
Configurated Relay Logic for 3 MA -24 V DC
Maximum switching current
:
5 A -DE 250 V AC resistant load – cos phi 1 – l r 0 msn (fl, r)
5 A -de 30 V DC resistant load – cos phi 1 – l r 0 msn (fl, r)
2 A -DE 250 V AC Inductive load – cos phi 0.4 – L R 7 msn (FL, R)
2 A -DE Inductive load over 30 V DC – COS Phi 0.4 – L R 7 MSN (FL, R)
Digital entry type
:
F programmable 24 V DC, Level 1 PLC, Impedance: 4700 Ohm
R Programmable 24 V DC, Level 1 PLC, Impedance: 4700 Ohm
RES Programmable 24 V DC, Level 1 PLC, Impedance: 4700 Ohm
Digital entrance logic
:
Positive Logic (Source) (F, R, RES), 5 V (Status 0), 11 V (Status 1)
Negative Logic (Block) (F, R, RES), 16 V (Status 0), 10 V (Status 1)
Dielectric power
:
Between 3535 V DC soil and power terminals
Between 5092 V DC Control and Power Terminals
Insulation resistance
:
1 MOHM 500 V DC for 1 minute
Frequency resolution
:
Screen Unit: 0.1 Hz
Analog Entry: 0,024 50 Hz
Communication service
:
Write Multiple Records (16) Maximum 2 Word
TIME EXPERIENCE BETWEEN 0.1 – 100 S
Read Device Definition (43)
Prevented Monitoring
Read waiting records (03) maximum 2 Word
Write Single Records (06) Option card
:
LonWorks for Communication Card
Power distribution in W
:
176 W
Air flow
:
60 m3 h
Functional
:
Middle
SPECIAL APPLICATION
:
HVAC
Motor power range AC-3
:
4 6 kW 380 440 V 3 phase
480 500 V 3 phase in 4 6 kW
Motor road
:
Speed ​​control device
Digital output number
:
2
Number of analog inputs
:
2
Analog input type
:
VIA Switch-Structible Voltage: 0 … 10 V DC 24 V MAKS, Impedance: 30000 OHM, resolution 10 bit
VIB Configurated Voltage: 0 … 10 V DC 24 V Max, Impedance: 30000 OHM, resolution 10 bit
VIB Configurable PTC Probe: 0 … 6 Probe, Impedance: 1500 Ohm
VIA Switch-Structible Current: 0 … 20 MA, Impedance: 250 ohm, resolution 10 bit
Analog output number
:
1
Physical interface
:
2 wire RS 485
Connector type
:
1 Open Style
1 RJ45
Transmission rate
:
9600 BPS or 19200 BPS
Transmission frame
:
Rtu
Number of Addresses
:
1 247
Data format
:
8 bits, 1 stop, no single pair or configurable parity
Polarization type
:
No impedance
Asynchronous motor control profile
:
Voltage frequency ratio – energy saving, square U f
Voltage frequency ratio, automatic IR Balancing (U F Automatic UO)
Voltage frequency ratio, 2 points
Voltage frequency ratio, 5 points
Sensor -free flux vector control, standard
Torque accuracy
:
– 15
Temporary Moment
:
120 nominal engine torque – 60 s for 10
Acceleration and slowing ramps
:
A separately adjustable between 0.01 – 3200 sec
Automatic connected to the load
Motor slip compensation
:
AUTOMATICS ALL KINDING LOAD
Adjustable
Voltage frequency ratio is not valid for engine control
Switching frequency
:
6 … 16 khz adjustable
12 … 16 kHz depreciation factor
Nominal switching frequency
:
12 KHz
Braking until it stops
:
With DC Injection
Network frequency
:
47,5 … 63 Hz
Possible line ISC
:
5 ka
Protection type
:
Protection against overheating: driver
Thermal Power Stage: Driver
Short Circuit Between Motor Phase: Driver
Entrance Phase Cuttings: Driver
Over Current Between Output Phase and Earth: Driver
Excessive voltages in DC data: Driver
Cutting in the control circuit: drive
Against the speed limit: driver
Line Feeding Excessive voltage or low voltage: Driver
Low Feeding Low Voltage: Driver
Against the Loss of Entry Phase: Driver
Thermal protection: engine
Motor Phase Cutting: Motor
With PTC probes: motor
Width
:
142 mm
Height
:
184 mm
Depth
:
150 mm
Product weight
:
3.35 kg
