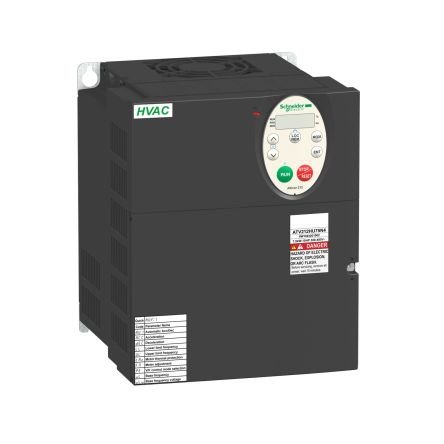

Schneider ATV212HU75N4 7.5KW 10HP 480V speed controller

Product group
:
ATV212
product destination
:
Asynchronous motors
Network Network of Phase
:
3 phases
Motor Power KW
:
7.5 kW
Motor Power HP
:
10 HP
Feeding voltage limits
:
323 528 V
feeding frequency
:
50 … 60 Hz – 5 … 5
line flow
:
11.7 A -DE 480 V
14.7 A -DE 380 V
Product series
:
Altivar 212
Product or component type
:
Variable Speed ​​Driver
Product Special Application
:
Pumps and ventilation in HVAC
Communication Port Protocol
:
Apogee fln
Guild
Bacnet
Metasys n2
Modbus
[US] Nominal Nutrition Voltage
:
380 … 480 V – 15 … 10
EMC filter
:
Class C2 EMC filter integrated
IP Protection Class
:
IP21
Complement
visible power
:
380 V in 12.2 kva
continuous output current
:
16 A -DE 380 V
16 A -DE 460 V
maximum temporary current
:
60 s for 17.6 A
Speed ​​control device output frequency
:
0.5 200 Hz
speed range
:
1 10
speed accuracy
:
Nominal slip – 10 of 0.2 tn – tn
local signaling
:
DC DATA ENERGY: 1 LED (Red)
output voltage
:
power feeding voltage
insulation
:
Electricity between power and control
Type of the cable
:
Assembly without Kit: 1 wire (s) IEC cable -45 C, copper 90 C xlpe epr
Mounting Kitle: 1 Wire (s) IEC cable -45 C, copper 70 C PVC
With a UL Type 1 Kit: 3 Wire (s) UL 508 cable -40 C, copper 75 C PVC
electric connection
:
VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES: Terminal 2.5 mm² AWG 14
L1 R, L2 S, L3 T: Terminal 16 mm² AWG 6
squeezing torque
:
0.6 N.M (VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES)
2.5 N.M, 22 lb.in (L1 R, L2 S, L3 T)
supply
:
Internal feeding for reference potentiometer (1 – 10 kohm): 10.5 V DC – 5, 10 A, protection type: overload and short circuit protection
Internal Feeding: 24 V DC (21 27 V), 200 A, Protection Type: Overload and Short Circuit Protection
sampling time
:
2 ms – 0.5 msn f hidden
2 ms – 0.5 msn r hidden
2 ms – 0.5 msn res hidden
3.5 ms – 0.5 msn VIA analogue
22 MS – 0.5 MSN VIB analogue
response time
:
FM 2 MS, Tolerance – Analog Fights for 0.5 MSN
FLA, FLC 7 MS, Tolerance – Hidden Foots for 0.5 MSN
FLB, FLC 7 MS, Tolerance – Hidden Foots for 0.5 MSN
RY, RC 7 MS, Tolerance – Hidden Foots for 0.5 MSN
truth
:
– 0.6 (VIA) 60 C for temperature change
– 0.6 (VIB) 60 C for temperature change
– 1 (FM) 60 C for temperature change
linearity error
:
VIA: Maximum value – Login for 0.15
VIB: Entry for the maximum value – 0.15
FM: – Output for 0.2
analog output type
:
FM Key-Released Voltage 0 … 10 V DC, Impedance: 7620 OHM, resolution 10 bit
FM Key-Released Current 0 … 20 MA, Impedance: 970 ohm, resolution 10 bit
Digital output type
:
Configurable Relay Logiki: (FLA, FLC) Na – 100000 Cycles
Configurable Relay Logiki: (FLB, FLC) NK – 100000 CYCLES
Configurated Relay Logiki: (RY, RC) Na – 100000 Cycles
minimum switching current
:
Configurated Relay Logic for 3 MA -24 V DC
maximum switching current
:
5 A -DE 250 V AC resistant load – cos phi 1 – l r 0 msn (fl, r)
5 A -de 30 V DC resistant load – cos phi 1 – l r 0 msn (fl, r)
2 A -DE 250 V AC Inductive load – cos phi 0.4 – L R 7 msn (FL, R)
2 A -DE Inductive load over 30 V DC – COS Phi 0.4 – L R 7 MSN (FL, R)
Digital entry type
:
F programmable 24 V DC, Level 1 PLC, Impedance: 4700 Ohm
R Programmable 24 V DC, Level 1 PLC, Impedance: 4700 Ohm
RES Programmable 24 V DC, Level 1 PLC, Impedance: 4700 Ohm
Digital entrance logic
:
Positive Logic (Source) (F, R, RES), 5 V (Status 0), 11 V (Status 1)
Negative Logic (Block) (F, R, RES), 16 V (Status 0), 10 V (Status 1)
dielectric power
:
Between 3535 V DC soil and power terminals
Between 5092 V DC Control and Power Terminals
insulation resistance
:
1 MOHM 500 V DC for 1 minute
frequency resolution
:
Screen Unit: 0.1 Hz
Analog Entry: 0,024 50 Hz
communication service
:
Prevented Monitoring
Read waiting records (03) maximum 2 Word
Write Multiple Records (16) Maximum 2 Word
Write Single Records (06)
Read Device Definition (43)
TIME EXPERIENCE BETWEEN 0.1 – 100 S
choice K card
:
LonWorks for Communication Card
Power distribution in W
:
291 W
air flow
:
100 m3 h
functionality
:
Middle
SPECIAL APPLICATION
:
HVAC
Variable Speed ​​Drive Application Selection
:
Building – HVAC Compressor for Scroll
Building – HVAC FAN
Building – Hvac Pump
Motor Power Range AC-3
:
7 11 KW 380 440 V 3 phase
7 11 kW -480 500 V 3 phase
Motor road
:
Speed ​​control device
Digital output number
:
2
Number of analog inputs
:
2
analog input type
:
VIA Switch-Structible Voltage: 0 … 10 V DC 24 V MAKS, Impedance: 30000 OHM, resolution 10 bit
VIB Configurated Voltage: 0 … 10 V DC 24 V Max, Impedance: 30000 OHM, resolution 10 bit
VIB Configurable PTC Probe: 0 … 6 Probe, Impedance: 1500 Ohm
VIA Switch-Structible Current: 0 … 20 MA, Impedance: 250 ohm, resolution 10 bit
analog output number
:
1
physical interface
:
2 wire RS 485
connector type
:
1 Open Style
1 RJ45
transmission rate
:
9600 BPS or 19200 BPS
transmission frame
:
Rtu
Number of Addresses
:
1 247
data format
:
8 bits, 1 stop, no single pair or configurable parity
polarization type
:
No impedance
asynchronous motor control profile
:
Voltage frequency ratio – energy saving, square U f
Voltage frequency ratio, automatic IR Balancing (U F Automatic UO)
Sensor -free flux vector control, standard
Voltage frequency ratio, 5 points
Voltage frequency ratio, 2 points
torque accuracy
:
– 15
Temporary Moment
:
120 nominal engine torque – 60 s for 10
acceleration and slowing ramps
:
A separately adjustable between 0.01 – 3200 sec
Automatic connected to the load
motor slip compensation
:
Voltage frequency ratio is not valid for engine control
AUTOMATICS ALL KINDING LOAD
Adjustable
switching frequency
:
6 … 16 khz adjustable
12 … 16 kHz depreciation factor
nominal switching frequency
:
12 KHz
braking until it stops
:
With DC Injection
Network frequency
:
47,5 … 63 Hz
Possible line ISC
:
22 ka
protection type
:
Protection against overheating: driver
Thermal Power Stage: Driver
Short Circuit Between Motor Phase: Driver
Entrance Phase Cuttings: Driver
Over Current Between Output Phase and Earth: Driver
Excessive voltages in DC data: Driver
Cutting in the control circuit: drive
Against the speed limit: driver
Line Feeding Excessive voltage or low voltage: Driver
Low Feeding Low Voltage: Driver
Against the Loss of Entry Phase: Driver
Thermal protection: engine
Motor Phase Cutting: Motor
With PTC probes: motor
Width
:
180 mm
Height
:
232 mm
depth
:
170 mm
Product weight
:
6,45 kg
Environment
pollution degree
:
3 ‘s suitable for 61800-5-1
IP protection degree
:
IP20 on the lid on the lid on the upper part without the IEC 61800-5-1
IP20 In the upper part, without a closing plate on the lid, suitable for IEC 60529
IP21 suitable for IEC 61800-5-1
IP21 suitable for IEC 60529
IP41 in the top part of the IEC 61800-5-1
IP41 in the top part of the IEC 60529
vibration resistance
:
1.5 mm (F 3 13 Hz) in accordance with IEC 60068-2-6
1 GN (F 13 200 Hz) to IEC 60068-2-8
impact resistance
:
For 15 gn, 11 ms for 11 msIEC 60068-2-27
environmental feature
:
Class 3C1
CLASS 3S2
noise level
:
51 DB suitable for86 188 eec
working height
:
1000 … 3000 m corner grounded type distribution networks are limited to 2000 m with a current drop per 100 m
Without 1000 m
relative humidity
:
5 95 Uygulama 60068-2-3
5 95 without dripping water ‘suitable for 60068-2-3
Air Air Temperature for Working
:
-10 40 C (without)
40 50 C (with depreciation factor)
Working position
:
Vertical – 10 degrees
Product Certificates
:
C-Tick
Nom 117
Ul
CSA
Marking
:
CE
Standards
:
EN 61800-3
EN 61800-3 ENVIRONMENT 1 Category C1
IEC 61800-3 Category C3
IEC 61800-5-1
IEC 61800-3 Category C2
IEC 61800-3 ENVIRONMENT 1 Category C2
EN 61800-3 ENVIRONMENT 2 Category C2
EN 61800-3 ENVIRONMENT 1 Category C2
EN 61800-3 Category C2
EN 61800-3 Category C3
EN 61800-3 ENVIRONMENT 2 Category C3
IEC 61800-3 ENVIRONMENT 1 Category C3
Ul type 1
IEC 61800-3 ENVIRONMENT 2 Category C2
EN 61800-3 ENVIRONMENT 1 Category C3
IEC 61800-3 ENVIRONMENT 2 Category C1
EN 55011 GROUP A GROUP 1
TO N 61800-3 environment 2 Category C1
EN 61800-5-1
IEC 61800-3 ENVIRONMENT 2 Category C3
IEC 61800-3
IEC 61800-3 ENVIRONMENT 1 Category C1
assembly style
:
Cooling block
electromagnetic compatibility
:
Electrostatic Discharge Immunity Test Level 3
Radio Frequency Electromagnetic Field Immune Test Level 3
Electricity Fast Temporary Explosion Immunism Test Level 4
1.2 50 µs-8 20 µs deduction immune test level 3
ADED RADIO FREQUENCY UNDERSTANDING TEST APPROVAL 3
Voltage decreases and deductions suitable for the Immune Test
regulation cycle
:
Adjustable PI Regulator
Storage environment conditions
:
-25 70 C
Technical Specifications
Strength
:
7.5 kW
