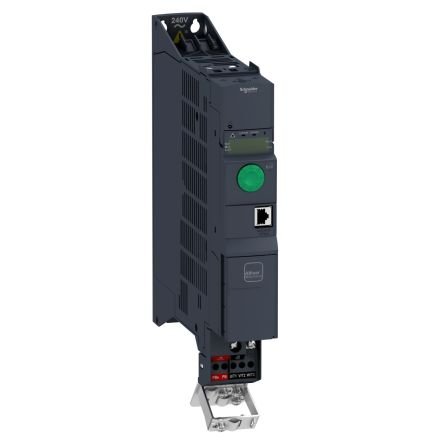

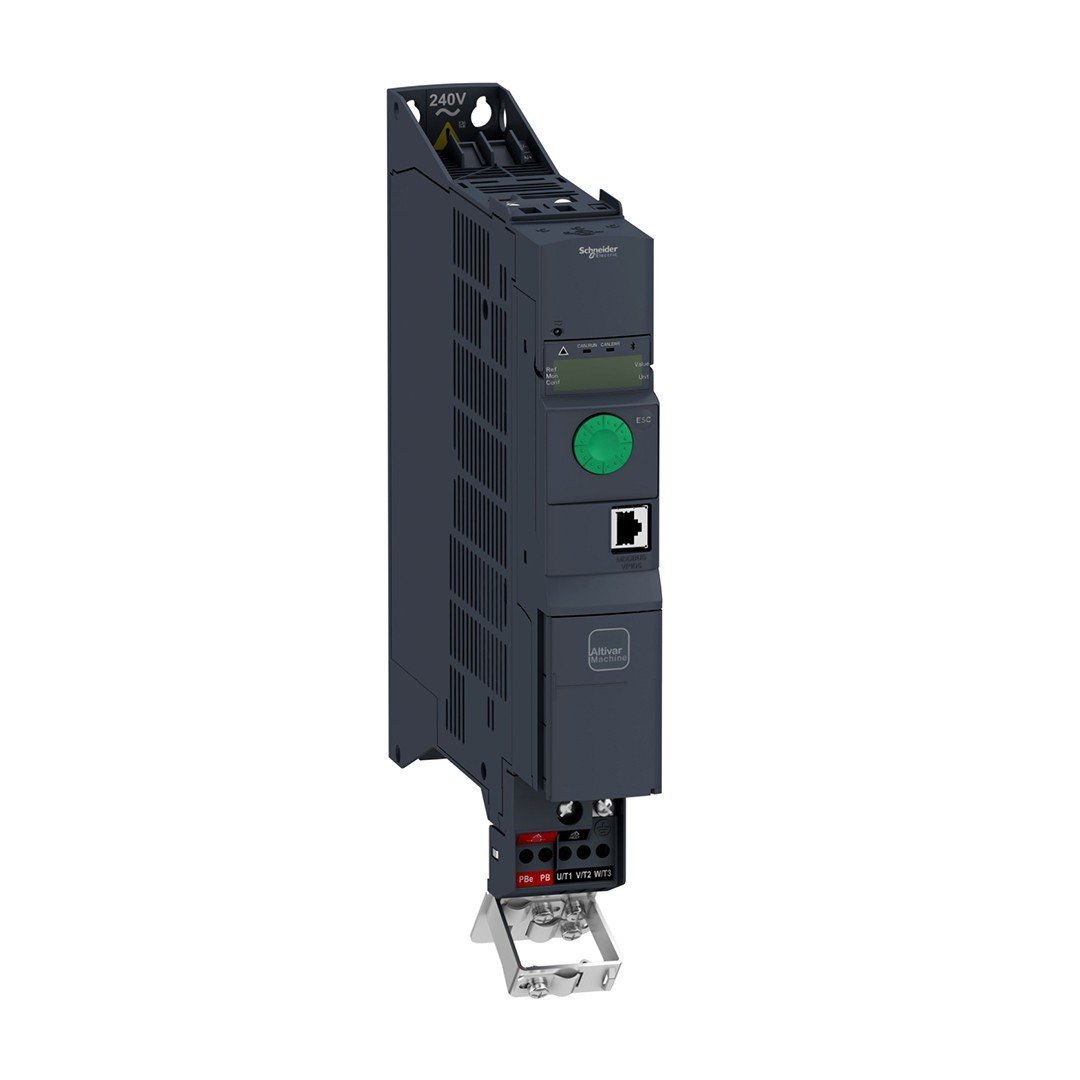

Schneider ATV320U06M2B 0.55KW speed controller

Product Series Altivar Machine ATV320
Product or component type variable speed drive
Product Special Application High Powerful Machines
Model standard type
Standard type
Driver Formal Book
Mounting Type Cabinet Mount
Communication Port Protocol Modbus Series
Canopen
OPTION CARD CONTACT MODULE, CANOPEN
Communication Module, Ethercat
Contact Module, Profibus DP v1
Communication Module, Profinet
Communication Module, Ethernet PowerLink
Communication Module, Ethernet IP
Communication Module, Devicenet
[US] Nominal Feeding Voltage 200 … 240 V – 15 … 10
Nominal output current 3.7 A
Motor strength KW 0.55 kW heavy condition for
EMC Filter Class C2 EMC filter Integrated
IP Protection Class IP20
Complement
Number of digital inputs 7
Digital Input Type Storage Sorry Closing, 24 V DC, Impedance: 1.5 Kohm
DI1 … DI6 Logic Inputs, 24 V DC (30 V)
DI5 Programmable as a coup entrance: 0 30 kHz, 24 V dc (30 V)
Digital Introduction Logic Positive Logic (Source)
Negative Logic (Block)
Number of digital outputs 3
Digital output type Open Collector DQ 0 1 KHz 30 V DC 100 MA
Open Collector DQ- 0 1 KHz 30 V DC 100 MA
Number of analog inputs 3
Analog input type AI1 Voltage: 0 … 10 V DC, Impedance: 30 Kohm, resolution 10 bit
AI2 Both pole differential voltage: – 10 V DC, Impedance: 30 Kohm, resolution 10 bit
AI3 Current: 0 … 20 MA (or 4-20 MA, X-20 MA, 20-X MA or Other Models According to Configuration), Impedance: 250 Ohm, resolution 10 bit
Analog output number 1
Analogue output type software-expulusable current AQ1: 0 … 20 MA impedance 800 ohm, resolution 10 bit
Software-Released Voltage AQ1: 0 … 10 V DC Impedance 470 ohm, resolution 10 bit
Relay output type configurable relay Logikiki R1A 1 NA ELECTRICAL DÜRGİLİK 100000 CYCLES
Configurable Relay Logiki R1B 1 NK Electrical Resistance 100000 Cycles
Configurated Relay Lojiki R1C
Configurated Relay Logiki R2A 1 NA ELECTRICITY DÜRGİLİK 100000 CYCLES
Configurated Relay Logiki R2C
Maximum switching current relay output R1A, R1B, R1C resistant load, cos phi 1: 3 a -de 250 V AC
Relay output R1A, R1B, R1C resistant load, cos phi 1: 3 a -de 30 V dc
Relay output R1A, R1B, R1C, R2A, R2C inductive load, cos phi 0.4 and l r 7 ms: 2 a -de 250 V AC
Relay output R1A, R1B, R1C, R2A, R2C inductive load, cos phi 0.4 and l r 7 ms: 2 a -de 30 V dc
Relay output R2A, resistant load on R2C, cos phi 1: 5 A -de 250 V AC
Relay output R2A, resistant load on R2C, cos phi 1: 5 a -de 30 V dc
Minimum switching current relay output R1A, R1B, R1C, R2A, R2C: 5 MA -DE 24 V DC
Access Method Slave Canopen
4 Quadrant Operation Possible True
Asynchronous motor control profile voltage frequency ratio, 5 points
Sensor -free flux vector control, standard
Voltage frequency ratio – energy saving, square U f
Sensor -free vector flux control – Energy savings
Voltage frequency ratio, 2 points
Synchronous motor control profile -free vector control
Maximum Output Frequency 0,599 KHz
Temporary Moment 170 200 Nominal Motor Torku
Acceleration and slowdown ramps linear
U
S
WHOA
Ramp switching
Acceleration Deceleration Ramp Adaptation
Acceleration Deceleration Automatic Stop with DC Injection
Motor slip compensation automatically all kinds of loads
Adjustable 0 … 300
Voltage frequency ratio (2 or 5 points) not valid
Switching Frequency 2 … 16 kHz adjustable
4 … 16 kHz depreciation factor
Nominal Switching Frequency 4 KHz
With DC Injection until it stops
Brake Chopper Integrated True
Line flow 7.9 a -de 200 V (heavy condition)
6.7 a -de 240 V (heavy condition)
Maximum input current 7.9 A
Maximum Output Voltage 240 V
The visible power is 1.6 kva -240 V (heavy condition)
Network Frequency 50 … 60 Hz
Relative Symmetric Network Frequency Tolerance 5
Possible line ISC 1 KA
Base Load Current at High Overload 66.0 A
Power distribution in W Fan: 35.0 W -DE 200 V 4 KHz
With Safety Function Safly Limited Speed ​​(SLS) True
With Safety Function Safe Brake Management (SBC SBT) False
With Safety Function Safe Operating Stop (SOS) False
With Safety Function Safe Po Po SITion (SP)
