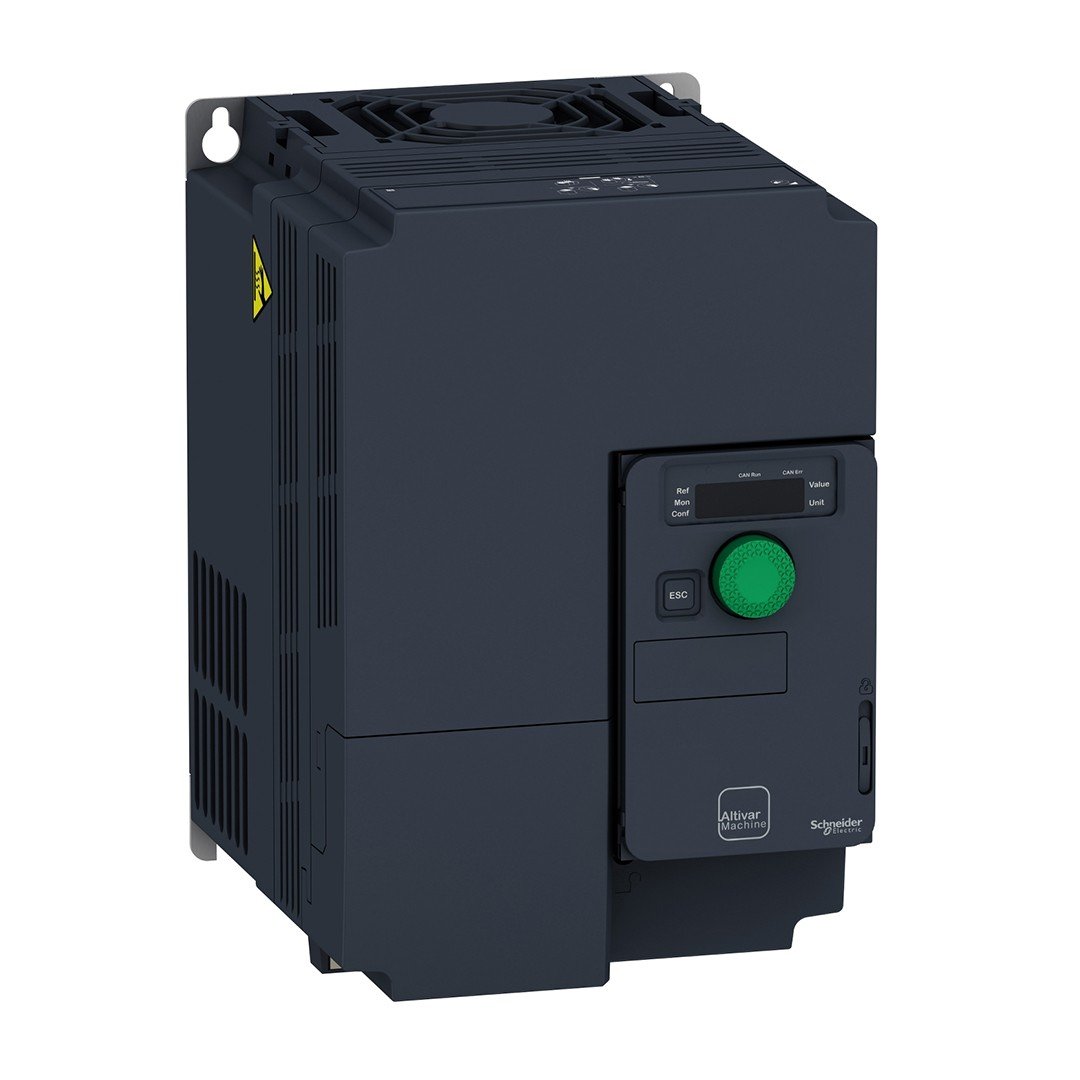

Schneider ATV320U75N4C 7.5KW speed controller

Product series
:
Altivar Machine ATV320
Product or component type
:
Variable Speed ​​Driver
Product Special Application
:
High power machines
Model
:
Standard type
Driver
:
Compact
Assembly type
:
Wall -mounted
Communication Port Protocol
:
Modbus Series
Canopen
Option card
:
Communication Module, Canopen
Communication Module, Ethercat
Contact Module, Profibus DP v1
Communication Module, Profinet
Communication Module, Ethernet PowerLink
Communication Module, Ethernet/IP
Communication Module, Devicenet
[US] Nominal Nutrition Voltage
:
380… 500 V – 15 … 10 %
Nominal output current
:
17.0 A
Motor Power KW
:
Heavy condition for 7.5 kW
EMC filter
:
Without EMC Filter
IP Protection Class
:
IP20
Complementary features
Number of digital inputs
:
7
Digital entry type
:
Sto Safe Torque Closing, 24 V DC, Impedance: 1.5 Kohm
DI1 … DI6 Logic Inputs, 24 V DC (30 V)
DI5 Programmable as a coup entrance: 0… 30 kHz, 24 V dc (30 V)
Digital entrance logic
:
Positive Logic (Source)
Negative Logic (Block)
Digital output number
:
3
Digital output type
:
Open Collector DQ+ 0… 1 KHz 30 V DC 100 MA
Open Collector DQ- 0… 1 KHz 30 V DC 100 MA
Number of analog inputs
:
3
Analog input type
:
AI1 Voltage: 0 … 10 V DC, Impedance: 30 Kohm, resolution 10 bit
AI2 Both pole differential voltage: +/- 10 V dc, impedance: 30 kohm, resolution 10 bit
AI3 Current: 0 … 20 MA (or 4-20 MA, X-20 MA, 20-X MA or Other Models According to Configuration), Impedance: 250 Ohm, resolution 10 bit
Analog output number
:
1
Analog output type
:
Software-Related Current AQ1: 0 … 20 MA Impedance 800 ohm, resolution 10 bit
Software-Released Voltage AQ1: 0 … 10 V DC Impedance 470 ohm, resolution 10 bit
Relay output type
:
Configurated Relay Logiki R1A 1 NA ELECTRICITY DÜRGİLİK 100000 CYCLES
Configurable Relay Logiki R1B 1 NK Electrical Resistance 100000 Cycles
Configurated Relay Lojiki R1C
Configurated Relay Logiki R2A 1 NA ELECTRICITY DÜRGİLİK 100000 CYCLES
Configurated Relay Logiki R2C
Maximum switching current
:
Relay output R1A, R1B, R1C resistant load, cos phi = 1: 3 a -de 250 V ac
Relay output R1A, R1B, R1C resistant load, cos phi = 1: 3 a -de 30 V dc
Relay output R1A, R1B, R1C, R2A, R2C inductive load, cos phi = 0.4 and l/r = 7 ms: 2 a -de 250 V AC
Relay output R1A, R1B, R1C, R2A, R2C inductive load, cos phi = 0.4 and l/r = 7 ms: 2 a -de 30 V dc
Relay output R2A, resistant load on R2C, cos phi = 1: 5 A -de 250 V AC
Relay output R2A, resistant load on R2C, cos phi = 1: 5 a -de 30 V dc
Minimum switching current
:
Relay output R1A, R1B, R1C, R2A, R2C: 5 MA -DE 24 V DC
Access method
:
Slave Canopen
Asynchronous motor control profile
:
Voltage/frequency ratio, 5 points
Sensor -free flux vector control, standard
Voltage/frequency ratio – energy saving, square U/F
Sensor -free vector flux control – Energy savings
Voltage/frequency ratio, 2 points
Synchronous motor control profile
:
Sensor -free vector control
Maximum output frequency
:
0,599 kHz
Temporary Moment
:
170… 200 % nominal engine torque
Motor slip compensation
:
AUTOMATICS ALL KINDING LOAD
Adjustable 0 … 300 %
Not valid at voltage/frequency (2 or 5 points)
Switching frequency
:
2 … 16 khz adjustable
4 … 16 kHz depreciation factor
Nominal switching frequency
:
4 KHz
Braking until it stops
:
With DC Injection
Line flow
:
26.5 A -DE 380 V (heavy condition)
18.7 A -DE 500 V (heavy condition)
Maximum input current
:
26.5 A
Maximum output voltage
:
500 V
Visible power
:
500 V in 16.2 kva (heavy condition)
Network frequency
:
50 … 60 Hz
Relative symmetrical network frequency tolerance
:
5 %
Possible line ISC
:
22 ka
Base load current at high load
:
17.0 A
Power distribution in W
:
Fan: 229,0 W -DE 380 V 4 kHz
Protection type
:
Entrance Phase Cuttings: Driver
Over Current Between Output Phase and Earth: Driver
Protection against overheating: driver
Short Circuit Between Motor Phase: Driver
Thermal protection: driver
Width
:
150 mm
Height
:
232.0 mm
Depth
:
178.0 mm
Product weight
:
3.6 kg
