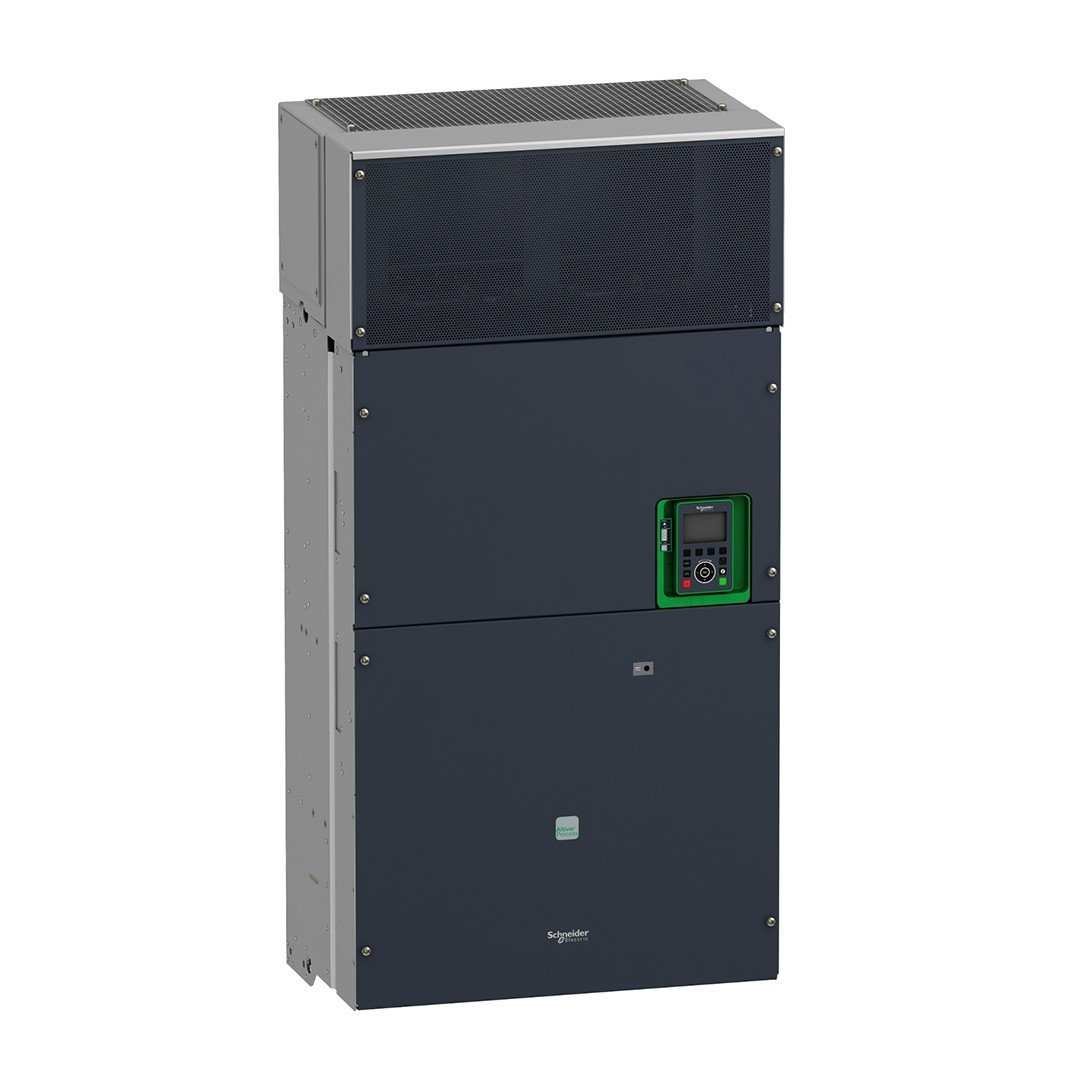

Schneider ATV930C25N4C 250KW speed controller

Range of Product
Altivar Process ATV900
Product or Component Type
Variable Speed ​​Drive
Device Application
Industrial Application
Device Short Name
ATV930
variant
Standard Version
Without Braking Chopper
Product Destination
Synchronous motors
Asynchronous motors
EMC FILTER
Integrated with 50 M Conforming to EN/IEC 61800-3 Category C3
IP Degree of Protection
IP00 Conforming to IEC 61800-5-1
IP00 Conforming to IEC 60529
IP21 Conforming to IEC 61800-5-1 with Kit VW3A9113 with Braking Unit
IP21 Conforming to IEC 60529 with Kit VW3A9113 withut Braking Unit
IP21 Conforming to IEC 61800-5-1 with Kit VW3A9114 with Braking Unit
IP21 Conforming to IEC 60529 with Kit vw3a9114 with bracking unit
Type of Cooling
Forced Convection
SUPPLY FREQUENCY
50… 60 Hz +/- 5 %
Network Number of Phases
3 PHASES
[Us] rated supply voltage
380… 480 V – 15… 10 %
Motor Power KW
250 kW (Normal Duty)
200 kW (Heavy Duty)
Motor Power HP
400 HP Normal Duty
300 HP Heavy Duty
Line Current
451 A AT 380 V (Normal Duty)
366 A AT 480 V (Normal Duty)
365 A AT 380 V (Heavy Duty)
301 A AT 480 V (Heavy Duty)
Prospective Line ISC
50 KA
APPARENT POWER
279 KVA AT 480 V (Normal Duty)
229 KVA AT 480 V (Heavy Duty)
Continuous Output Current
481 A AT 2.5 KHZ for Normal Duty
387 A AT 2.5 KHZ for Heavy Duty
Maximum Transient Current
577 A DURING 60 S (Normal Duty)
581 A DURING 60 S (Heavy Duty)
asynchronous motor control profile
VARIABLE TORQUE STANDARD
Constant Torque Standard
Optimized Torque Mode
Synchronous Motor Control Profile
Permanent magnet engine
Synchronous relucance engine
Speed ​​Drive Output Frequency
0.1… 599 Hz
nominal switching frequency
2.5 kHz
switching frequency
1… 8 KHz Adjustable
2.5… 8 khz with deRating Factor
Safety Function
Sto (Safe Torque Off) SIL 3
Number of Preset Speeds
16 Preset Speeds
Communication Port Protocol
MODBUS Serial
Ethernet/IP
MODBUS TCP
OPTION MODULE
Slot A: Communication Module for Profibus DP v1
Slot A: Communication Module For Profinet
Slot A: Communication Module For Devicenet
Slot A: Communication Module for Ethercat
Slot A: Communication Module for Canopen Daisy Chain RJ45
Slot A: Communication Module for Canopen Sub-D 9
Slot A: Communication Module for Canopen Screw Terminals
Slot A/Slot B/Slot C: Digital and Analog I/O Extension Module
Slot A/Slot B/Slot C: Output Relay Extension Module
Slot B: 5/12 V Digital Encoder Interface Module
Slot B: Analog Encoder Interface Module
Slot B: Resolver Encoder Interface Module
Communication Module for Ethernet PowerLink
