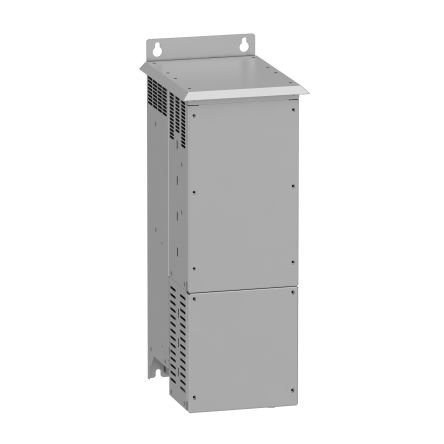

Schneider VW3A7105 400/480V 100 kW braking unit for speed controller

Serial Compliance Altivar Process ATV900
Product Compatibility Speed ​​Controller ATV930 BRAND COST 110 KW 380 … 480 V
Speed ​​control device ATV930 brake cutting 130 kW 380 … 480 V
Speed ​​control device ATV930 brake cutting 160 kW 380 … 480 V
Thermal losses 400 W
Minimum resistance value to be combined 2.5 ohm
thermal probe by the protection type integrated thermal protection
maximum braking power 160 kW
permanent braking power 100 kW (on fixed power and on the threshold)
320 kW for 0.05 and on the threshold of holding for 0.05
250 kW for 0.15 constant power and on the threshold
200 kW for 0.5 constant power and on the threshold
160 kW for 1 constant power and on the threshold
activation threshold 780 V DC +/- 1 %
Maximum DC Database Tension 850 V
Width 216 mm
height 658 mm
Depth 303 mm
Product weight 17 kg
Cooling air volume 166 m3/h
Working position vertical +/- 10 degrees
Mechanical Durability Vibrations Compatible for Class 3M4 60721-3-3
