Specs at a glance
Accuracy: up to 0.4 mm
Process temperature: -200°C…200°C
(-328°F…392°F)
Process pressure / max. overpressure limit: 0,2…6 bar abs
Max. measurement distance: 36 m (118 ft)
Main wetted parts: 316L, AlloyC276, PTFE
—————————————-
Field of application
Endress Hauser’s

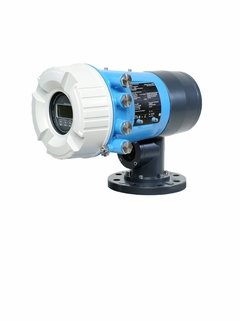

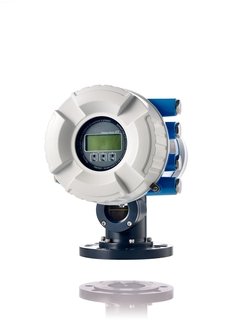

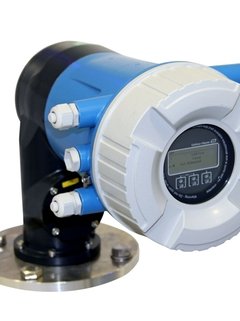

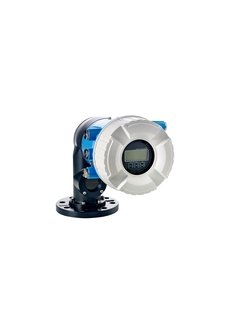

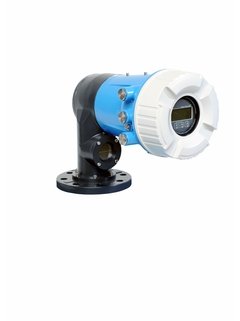

The intelligent tank gauge Proservo NMS80 is designed for high accuracy liquid level measurement in custody transfer and inventory control applications with NMi- and PTB-approvals. It meets the relevant requirements according to OIML R85 and API 3.1B. It fulfills the exact demands of tank inventory management and loss control and is optimized in regards of total cost saving and safe operation.
• Process connections: Flanges
• Temperature: -200 to +200°C (-328 to +392°F)
• Pressure: 0 to +6bar (0 to +87psi)
• Maximum measuring range: 36m (118ft)
• Accuracy: ±0.4mm (±0.02″)
• International explosion protection and custody transfer certificates, overfill prevention WHG, SIL
