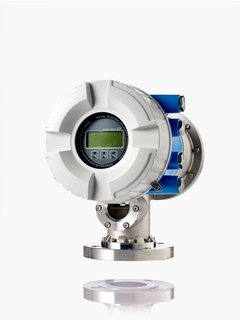

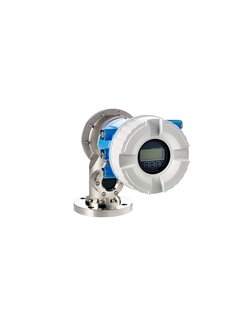

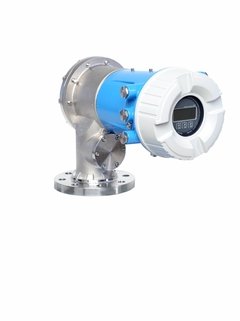

Servo tank gauging instrument Proservo NMS83 | Endress Hauser

Specs at a glance

Accuracy: up to 0.4 mm
Process temperature: -200°C…200°C
(-328°F…392°F)
Process pressure / max. overpressure limit: 6 bar abs
Max. measurement distance: 22 m (72 ft)
Main wetted parts: 316L, AlloyC276, PTFE

—————————————-

Field of application

Endress Hauser’s

The intelligent tank gauge Proservo NMS83 is designed for high accuracy liquid level measurement in custody transfer and inventory control applications with NMi- and PTB-approvals. It meets all requirements for hygienic applications. It fulfills the exact demands of tank inventory management and loss control and is optimized in regards of total cost saving and safe operation.

• Process connections: Flanges
• Temperature: -200 to +200°C (-328 to +392°F)
• Pressure: 0 to +6bar (0 to +87psi)
• Maximum measuring range: 22m (72ft)
• Accuracy: ±0.4mm (±0.02″)
• International explosion protection and custody transfer certificates, overfill prevention WHG, SIL
