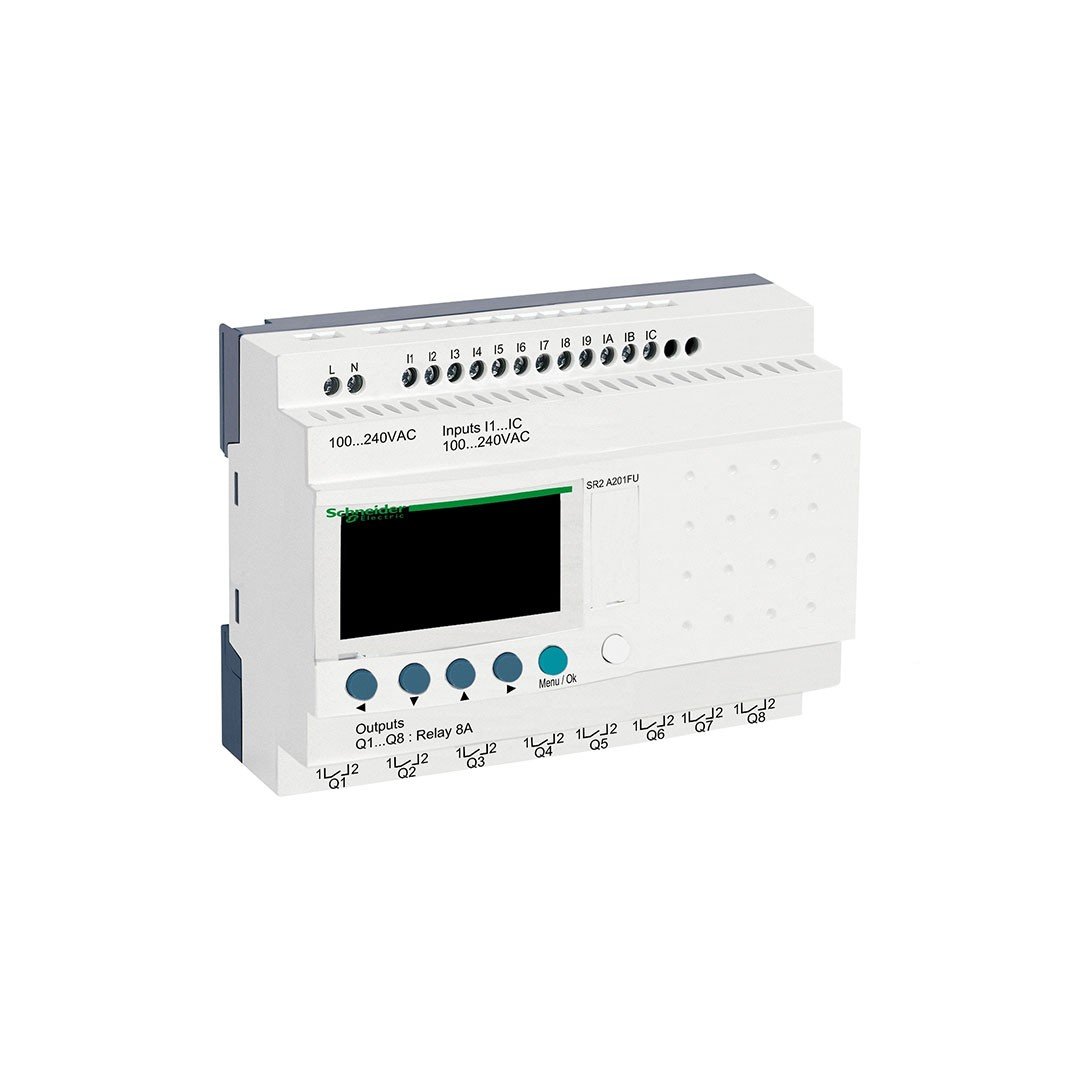

Schneider SR2A201FU 12 Introduction 8 Output Zelio Logic Smart Relay

Product Series Zelio Logic
Product or component type compact smart relay
With local screen
Control scheme number number 0… 240ile Ladder programming
Cycle time 6… 90 ms
Backup time 10 years at 25 ° C per year
Clock deviation 12 min/year 0… 55 ° C
25 ° C per 6 sec/moon
Program memory every time the controls are given
[US] Nominal Nutrition Voltage 100 … 240 V AC
Feeding voltage limits 85… 264 V
Feeding Frequency 50/60 Hz
Maximum Feeding Current 100 MA -100 V (without extension)
240 V (without extension)
Power consumption in va 11 va without extension
Insulation voltage 1780 V
Protection type against the transformation of terminals (no control instructions are applied)
Number of digital inputs 12
Digital Input Voltage 100 … 240 V AC
Digital Input Current 0.6 MA
Digital Entry Frequency 47 … 53 Hz
57 … 63 Hz
Digital entry for voltage status 1 guaranteed> = 79 V
Digital input for voltage status 0 guaranteed <= 40 V Current Status 1 Warranty> = 0.17 MA (Digital Entry)
Current Status 0 Warranty <= 0.5 MA (Digital Entry) analog input number 0 Entry Impedance Digital Entry for 350 KOHM Number of Outlets 8 Relay Output voltage limits 5 ... 30 V DC (relay output) 24 ... 250 V AC Relay output for contact type and arrangement Relay output for 8 A for all 8 outputs Electrical resistance AC-12: 500000 CYCles-230 V, 1.5 A for the relay output 'suitable for the 60947-5-1 AC-15: 500000 Cycles-230 V, 0.9 A for the Relay Output for the Relay Output 60947-5-1 DC-12: 500000 CYCles-24 V, 1.5 A for the relay output 'suitable for 60947-5-1 DC-13: 500000 Cycles-24 V, 0.6 A for the Relay Output for the Relay Output 60947-5-1 Switching capacity in MA> = 10 mA -12 V (relay output)
Relay output for 0.1 Hz (IE)
Relay output for 10 Hz (non -load)
Relay output for 10000000 Cycles
[UimP] Nominal Pulse Resistance Voltage In accordance with 4 KV, IEC 60947-1 and EN/IEC 60664-1
without clock
Response time Digital Introduction for Ladder Programming (Status 1 to 1)
50 msile Ladder Programming (Status 1 to 0 to 0) Digital Entrance
50 … 255 msile FBD Programming (Status 0 to Status 1) Digital Introduction
50 … 255 msile FBD Programming (Status 1 to 0 to 0) Digital Introduction
Relay output for 10 ms (status 0 to 1)
Relay output for 5 ms (status 1 status 0)
Connections – Terminals screw terminals, 1 x 0.2 … 1 x 2.5 mm² (AWG 25 … AWG 14) Semi
Screw terminals, 1 x 0.2 … 1 x 2.5 mm² (AWG 25 … AWG 14) Solid
Screw terminals, 1 x 0.25 … 1 x 2.5 mm² (AWG 24 … AWG 14) Flexible cable tip
Screw terminals, 2 x 0.2 … 2 x 1.5 mm² (AWG 24 … AWG 16) Solid
Screw terminals, 2 x 0.25 … 2 x 0.75 mm² (AWG 24 … AWG 18) Flexible cable tip
Squeezing torque 0.5 n.m
Excessive voltage category III Conforming to IEC 60664-1
Product weight 0.38 kg
