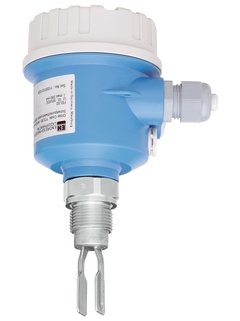

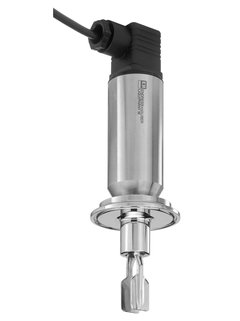

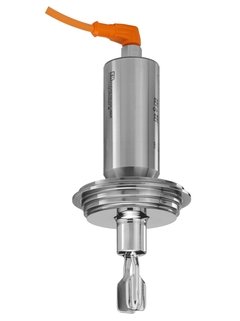

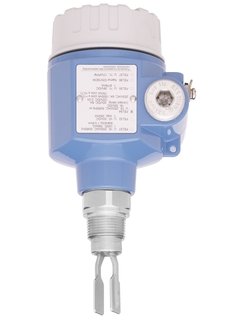

Vibronic Point level detection Liquiphant FTL50 | Endress Hauser

Specs at a glance

Process temperature: -50 °C…+150 °C
(-58 °F…+302 °F)
Process pressure / max. overpressure limit: Vacuum…64 bar
(Vacuum…928 psi)
Min. density of medium: 0.5g/cm³(0.4g/cm³ option)

—————————————-

Field of application

Endress Hauser’s

Liquiphant FTL50 is a point level switch for use in hazardous areas with all international certificates. Useable in all industries. FTL50 offers functional safety SIL2/SIL3. With the second line of defense the highest degree of safety and availability of the device can be guaranteed. Reliable measurement values, not affected by: changing media properties, flow, turbulences, gas bubbles, foam, vibrations or build-up.

• Process connections: Threads, flanges and hygienic process connection (Tri-Clamp)
• Temperature: -50 to +150°C (-58 to +302°F)
• Pressure: -1 to +64bar (-14.5 to +928psi)
• Sensor material: 316L, Alloy
• International explosion protection certificates, overfill protection WHG, SIL, marine approvals
