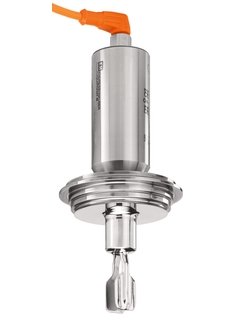

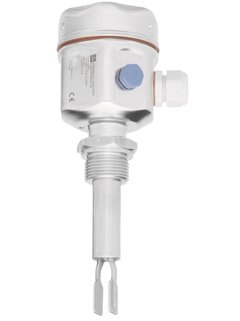

Vibronic Point level detection Liquiphant FTL51H

Specs at a glance

Process temperature: -50 °C…+150 °C
(-58 °F…+302 °F)
Process pressure / max. overpressure limit: Vacuum…64 bar
(Vacuum…928 psi)
Min. density of medium: 0.5g/cm³
(0.4g/cm³ optional)

—————————————-

Field of application

Liquiphant FTL51H is a point level switch with extension tube for use in hazardous areas with all international certificates. Especially useable in the food and life sciences industry with hygienic certificates (3-A, EHEDG, ASME BPE). FTL51H offers functional safety SIL2/SIL3. Reliable measurement values, not affected by: changing media properties, flow, turbulences, gas bubbles, foam, vibrations or build-up.

• Process connections: Threads, flanges and hygienic process connection (Tri-Clamp, dairy coupling, aseptic, DRD, SMS, Varivent)
• Temperature: -50 to +150°C (-58 to +302°F)
• Pressure: -1 to +64bar (-14.5 to +928psi)
• Sensor material: 316L
• International explosion protection certificates, overfill protection WHG, SIL, hygienic certificates, marine approvals
