Specs at a glance
Process temperature: –50°C…+150°C
(–58°F…+300°F)
Process pressure / max. overpressure limit: Vacuum…40 bar
(580 psi)
Min. density of medium: Density from 0.4 g/cm3
(0.4 SGU)
—————————————-
Field of application

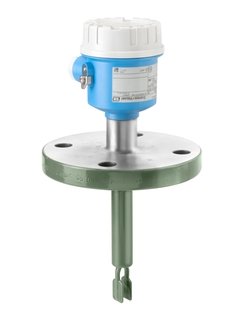

Liquiphant FTL85 is a coated point level switch for use in hazardous areas with all international certificates. FailSafe overfill protection in applications with functional safety up to SIL3 with one device. With high corrosion-resistant coating made of enamel, ECTFE and various PFA materials. Reliable measurement values, not affected by: changing media properties, flow, turbulences, gas bubbles, foam, vibrations or build-up.
• Process connections: Threads and flanges
• Temperature: -50 to +150°C (-76 to +300°F)
• Pressure: -1 to +40bar (-14.5 to +580psi)
• Sensor length: Extension pipe up to 3m (9.8ft)
• Sensor material: Enamel, ECTFE and various PFA materials
• International explosion protection certificates, overfill protection WHG, SIL
