Specs at a glance
Accuracy: class 2 acc. to IEC 60584
Max. process pressure (static): at 20 °C: 1 bar (15 psi)
Operating temperature range: Type S:
0 °C …1.600 °C
(32 °F …2.912 °F)
Type R:
0 °C …1.600 °C
(32 °F …2.912 °F)
Type B:
600 °C …1.700 °C
(1.112 °F …3.092 °F)
Max. immersion length on request: up to 3.500,00 mm (137,80”)
—————————————-
Field of application
Measuring points with extremely high process temperatures require these thermometers with ceramic thermowells and special metal thermocouples, such as platinum and rhodium. The thermowell as well as the intermediate and internal sheath of ceramic materials protects from mechanical and chemical damages in the process and increases the life span of the sensors. This leads to: Cost savings for maintenance of the measuring point, quality improvements of the products and increased plant safety.

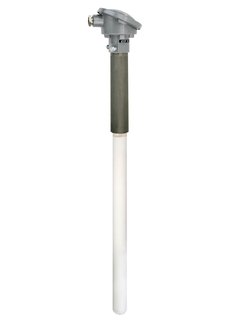

• The TAF12T are assemblies with triple ceramic protection tubes, designed specifically for applications such as ceramic baking ovens, brickworks, porcelain production and glass industries. They contain a single or double TC insert in ceramic insulators.
• Process temperatures: up to +1700 °C (+3092 °F)
