Specs at a glance
Max. measurement error: Mass flow (liquid): ±0.10 %
Volume flow (liquid): ±0.10 %
Density (liquid): ±0.0005 g/cm³
Measuring range: 0 to 70 000 kg/h (0 to 2570 lb/min)
Medium temperature range: –50 to +150 °C (–58 to +302 °F)
Max. process pressure: PN 40, Class 150, 20K
Wetted materials: Measuring tube: 1.4435 (316L)
Connection: 1.4435 (316L); 1.4404 (316/316L)
—————————————-
Field of application
Endress Hauser’s

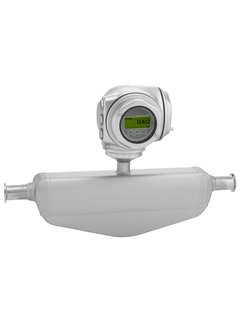

Promass S is at the forefront in hygienic design and dedicated to applications in the food and beverage industry requiring optimal cleanability. The self‐drainable single-tube system ensures careful treatment of fluids. With its compact transmitter Promass S 300 offers high flexibility in terms of operation and system integration: access from one side, remote display and improved connectivity options. Heartbeat Technology enables process safety at all times.
• Measuring principle operates independently of physical fluid properties such as viscosity or density
• Dedicated to applications requiring optimal cleanability under hygienic conditions.
• Large range of hygienic process connections
• 3-A and EHEDG conform
• Fast recovery from CIP/SIP
• Compact dual-compartment housing with up to 3 I/Os
• Backlit display with touch control and WLAN access
• Remote display available
Device properties
