Specs at a glance
Accuracy: +/- 1 mm (0.04 in)
Process temperature: -40…+130 °C
(-40…+266 °F)
Process pressure / max. overpressure limit: Vacuum …16 bar
(Vacuum … 232 psi)
Max. measurement distance: 50 m (164 ft)
Main wetted parts: PTFE antenna
PP or 316L process connections
—————————————-
Field of application
Endress Hauser’s

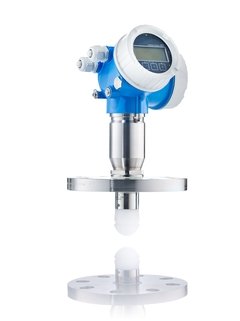

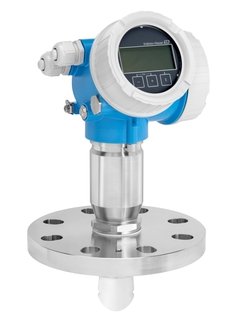

Micropilot FMR60 is the first 80GHz radar developed according to the international functional safety directive IEC 61508. The free space radar offers maximum reliability due to the drip-off antenna, improved algorithms and small beam angle. It is used for continuous non-contact level measurement of liquids, pastes and slurries. The measurement is not affected by changing media, temperature changes, gas blankets or vapors. It also possesses the smart sensor functionality Heartbeat Technology.
• Process connections: Threads or flanges
• Temperature: –40 to +130°C (–40 to +266°F)
• Pressure: –1 to +16bar (–14.5 to +232psi)
• Maximum measuring range: 50m (164ft)
• Accuracy: ±1mm (0.04in)
• W-band: 80GHz
• International explosion protection certificates, overfill prevention WHG, SIL, marine approvals, 5-point linearity protocol
