Specs at a glance
Accuracy: +/- 3 mm (0.12 in)
Process temperature: -40…+400 °C
(-40…+752 °F)
Process pressure / max. overpressure limit: Vacuum…16 bar
(Vacuum…232 psi)
Max. measurement distance: 70 m (230 ft)
Main wetted parts: 316L, PEEK, PTFE, Polyamid
—————————————-
Field of application

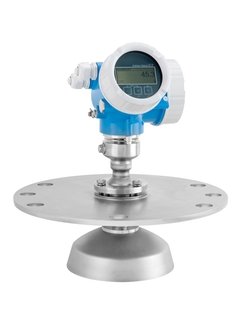

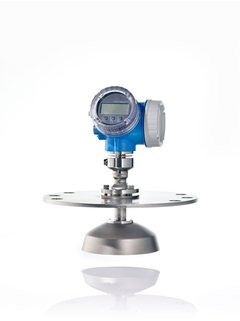

Micropilot FMR57 is the sensor for the highest demands in bulk solids and best suited for measurements in high silos, bunkers or stockpiles. The parabolic antenna facilitates very small emitting angles and thus the measurement in slim silos. Micropilot free space radar is used for continuous, non-contact level measurement in powdery to granular bulk solids. Dust, filling noises, temperature layers and gas layers do not affect the measurement.
• Process connections: Thread or flange
• Temperature: -40 to +400°C (–40 to 752°F)
• Pressure: -1 to +16bar (-14.5 to +232psi)
• Maximum measuring range: 70m (230ft)
• K-band: 26GHz
• International explosion protection certificates, SIL, 5-point linearity protocol
