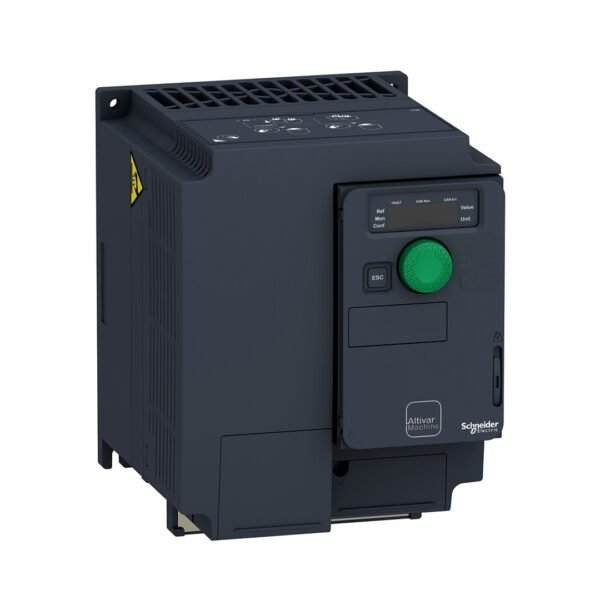

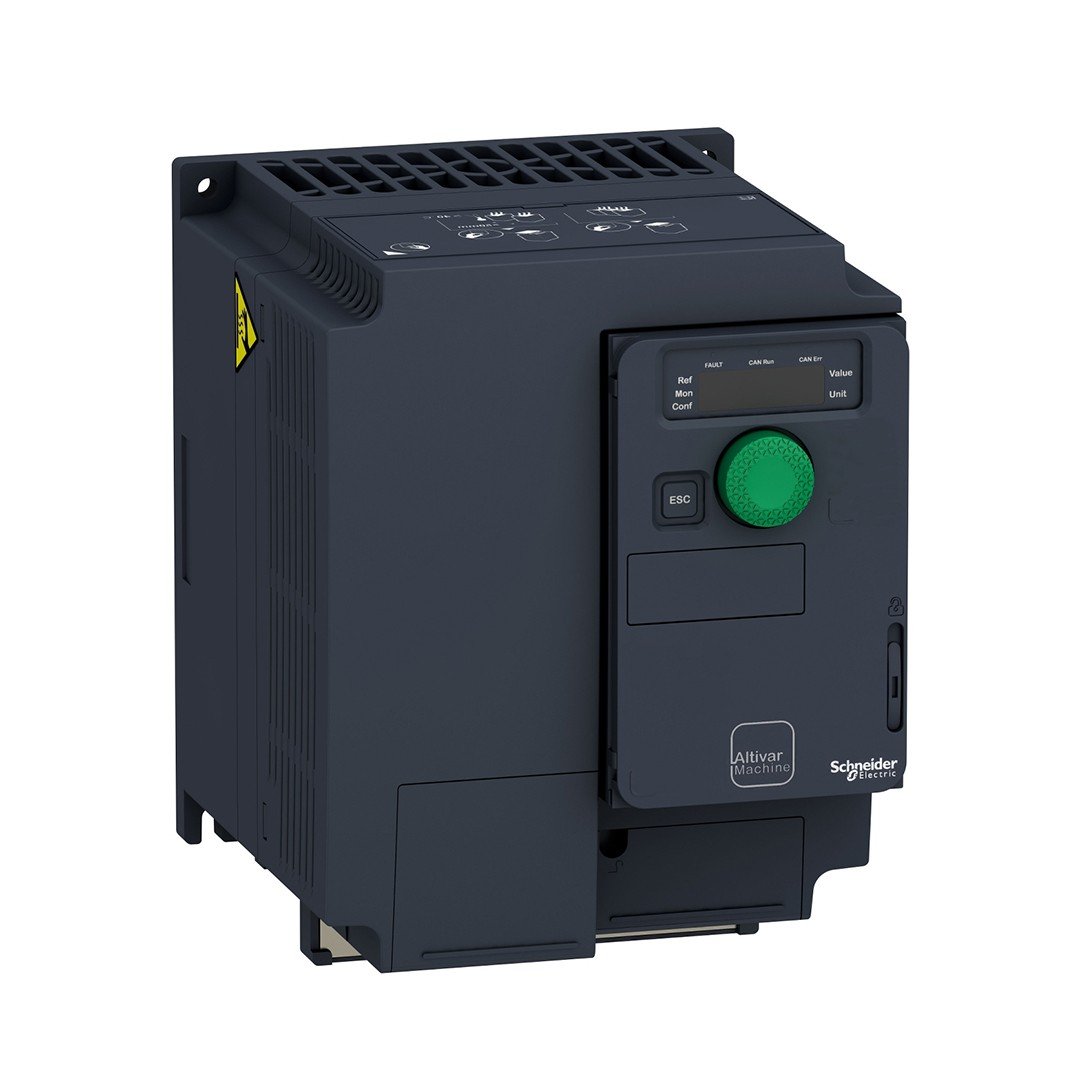

Schneider ATV320U22N4C 2.2KW speed controller
Variable Speed Drive Altivar ATV320 – 2.2kW – 380…500V – 3 Phase – compact – SCHNEIDER quality product.
Place your order
Product series
:
Altivar Machine ATV320
Product or component type
:
Variable Speed Driver
Product Special Application
:
High power machines
Model
:
Standard type
Connection Cut Key
Driver
:
Compact
Assembly type
:
Wall -mounted
Communication Port Protocol
:
Modbus Series
Canopen
Option card
:
Communication Module, Canopen
Communication Module, Ethercat
Contact Module, Profibus DP v1
Communication Module, Profinet
Communication Module, Ethernet PowerLink
Communication Module, Ethernet IP
Communication Module, Devicenet
[US] Nominal Nutrition Voltage
:
380 500 V – 15 … 10
Nominal output current
:
5.5 A
Motor Power KW
:
Heavy condition for 2.2 kW
EMC filter
:
Class C2 EMC filter integrated
IP Protection Class
:
IP20
Complementary features
Number of digital inputs
:
7
Digital entry type
:
Sto Safe Torque Closing, 24 V DC, Impedance: 1.5 Kohm
DI1 … DI6 Logic Inputs, 24 V DC (30 V)
DI5 Programmable as a coup entrance: 0 30 kHz, 24 V dc (30 V)
Digital entrance logic
:
Positive Logic (Source)
Negative Logic (Block)
Digital output number
:
3
Digital output type
:
Open Collector DQ 0 1 KHz 30 V DC 100 MA
Open Collector DQ- 0 1 KHz 30 V DC 100 MA
Number of analog inputs
:
3
Analog input type
:
AI1 Voltage: 0 … 10 V DC, Impedance: 30 Kohm, resolution 10 bit
AI2 Both pole differential voltage: – 10 V DC, Impedance: 30 Kohm, resolution 10 bit
AI3 Current: 0 … 20 MA (or 4-20 MA, X-20 MA, 20-X MA or Other Models According to Configuration), Impedance: 250 Ohm, resolution 10 bit
Analog output number
:
1
Analog output type
:
Software-Related Current AQ1: 0 … 20 MA Impedance 800 ohm, resolution 10 bit
Software-Released Voltage AQ1: 0 … 10 V DC Impedance 470 ohm, resolution 10 bit
Relay output type
:
Configurated Relay Logiki R1A 1 NA ELECTRICITY DÜRGİLİK 100000 CYCLES
Configurable Relay Logiki R1B 1 NK Electrical Resistance 100000 Cycles
Configurated Relay Lojiki R1C
Configurated Relay Logiki R2A 1 NA ELECTRICITY DÜRGİLİK 100000 CYCLES
Configurated Relay Logiki R2C
Maximum switching current
:
Relay output R1A, R1B, R1C resistant load, cos phi 1: 3 a -de 250 V ac
Relay output R1A, R1B, R1C resistant load, cos phi 1: 3 a -de 30 V dc
Relay output R1A, R1B, R1C, R2A, R2C inductive load, cos phi 0.4 and l r 7 ms: 2 a -de 250 V AC
Relay output R1A, R1B, R1C, R2A, R2C inductive load, cos phi 0.4 and l r 7 ms: 2 a -de 30 V dc
Relay output R2A, resistant load on R2C, cos phi 1: 5 A -de 250 V AC
Relay output R2A, resistant load on R2C, cos phi 1: 5 a -de 30 V dc
Minimum switching current
:
Relay output R1A, R1B, R1C, R2A, R2C: 5 MA -DE 24 V DC
Access method
:
Slave Canopen
4 Quadrant Operation Possible
:
True
Asynchronous motor control profile
:
Voltage frequency ratio, 5 points
Sensor -free flux vector control, standard
Voltage frequency ratio – energy saving, square U f
Sensor -free vector flux control – Energy savings
Voltage frequency ratio, 2 points
Synchronous motor control profile
:
Sensor -free vector control
Maximum output frequency
:
0,599 kHz
Temporary Moment
:
170 200 nominal engine torque
Acceleration and slowing ramps
:
Linear
U
S
WHOA
Ramp switching
Acceleration Deceleration Ramp Adaptation
Acceleration Deceleration Automatic Stop with DC Injection
Motor slip compensation
:
AUTOMATICS ALL KINDING LOAD
Adjustable 0 … 300
Voltage frequency ratio (2 or 5 points) not valid
Switching frequency
:
2 … 16 khz adjustable
4 … 16 kHz depreciation factor
Nominal switching frequency
:
4 KHz
Braking until it stops
:
With DC Injection
Brake Chopper Integrated
:
True
Line flow
:
8.7 A -DE 380 V (heavy condition)
6.6 A -DE 500 V (heavy condition)
Maximum input current
:
8.7 A
Maximum Output Voltage
:
500 V
Visible power
:
500 V in 5.7 kVA (heavy condition)
Network frequency
:
50 … 60 Hz
Relative Symmetric Network Frequency Tolerance
:
5
Possible line ISC
:
5 ka
Base Load Current at High Overload
:
8.0 A
Power distribution in W
:
FAN: 74.0 W -DE 380 V 4 KHZ
With Safety Function Safly Limited Speed (SLS)
:
True
With Safety Function Safe Brake Management (SBC SBT)
:
False
With Safety Function Safe Operating Stop (SOS)
:
False
With Safety Function Safe Position (SP)
:
False
With Safety Function Safe Programmable Logic
:
False
With Safety Function Saed Speed Monitor (SSM)
:
False
With Safety Function Safe Stop 1 (SS1)
:
True
With SFT FCT SAFE STOP 2 (SS2)
:
False
With Safety Function Safe Torque Off (Sto)
:
True
With Safety Function Safly Limited Position (SLP)
:
False
With Safety Function Safe Direction (SDI)
:
False
Protection type
:
Entrance Phase Cuttings: Driver
Over Current Between Output Phase and Earth: Driver
Protection against overheating: driver
Short Circuit Between Motor Phase: Driver
Thermal protection: driver
Width
:
140 mm
Height
:
184.0 mm
Depth
:
158.0 mm
Product weight
:
2.1 kg
