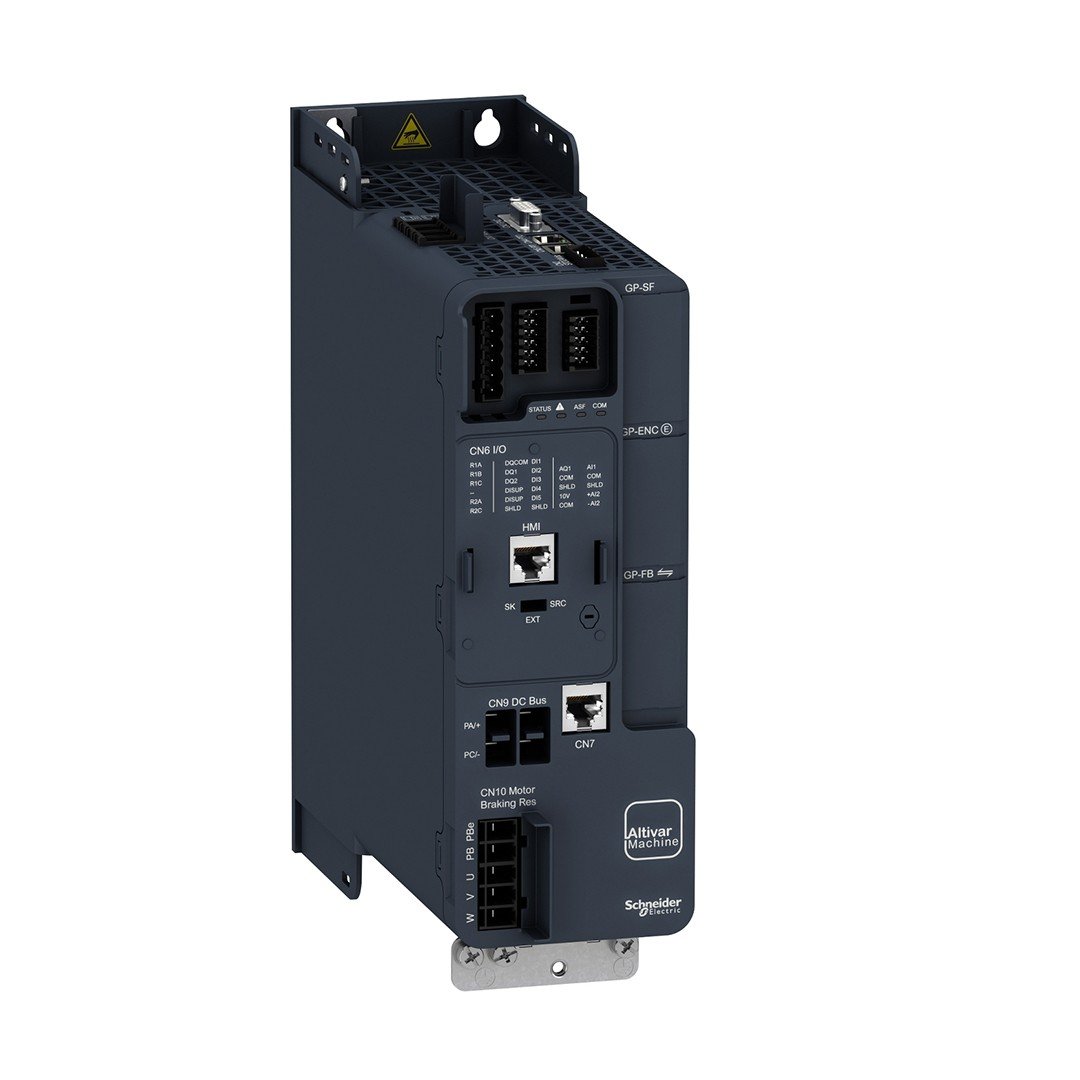

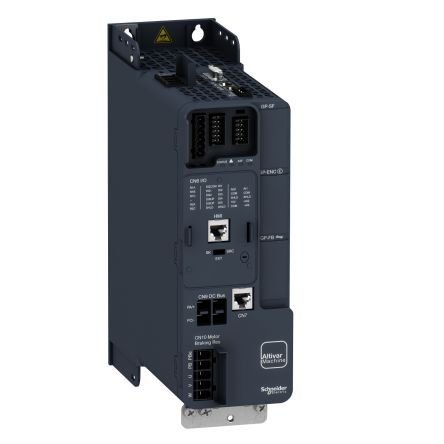

Schneider ATV340U30N4 3KW Trifase Speed ​​control device

Product Code: ATV340U30N4
Product Type: Altivar 340 Speed ​​control device
Product Description: Schneider ATV340U30N4, 3 KW, Speed ​​Control, 380-480 Vac Trifase Nutrition Voltage
Nutrition Voltage (Volt): 380-480 Vac Trifase
Type: Modular Version
GÜŞ (KW) -Ar Condition: 3 KW
Continuous current (Ampe) -Ar Condition: 7.2 Amper
Temporary current (A) 1 minute-heavy condition: 10.8 amps
Temporary current (a) 2 sec-extensive condition: 13 amps
Entry and Output Units: 5 Digital Input, 2 Relay Output, 1 Analog Input, 1 Analog Output
Suitable motor type: Suitable for trifase engines, not suitable for monophase engines
Altivar 340 Series General Features: Speed ​​control devices for smart machines, superior machine performance, accelerated response time and sustainable productivity
Dimensions (mm): 85x398x232,5mm
Note 1: ATV340 can work as both severe and normal condition (12%overload current). You can get support at 444 30 30 for the use of normal castle
Note 2: Small Turkish Control Panel (VW3A1113) should be ordered as optional, does not come with the product
Note 3: The contribution of the EMC plate is also included in the dimensions, but optional modules are not added to the total depth. +20mm is added to the depth when it is used.
Note 4: An external Ethernet card cannot be installed in modular ATV340 references. Ethernet Version International Ethernet IP and MODBUS TCP supports communication
Altivar 340 Features: – Asynchronous, permanent magnet, torque, conical, relative motors in all kinds of productivity class
– Real -time driver response time for ez Zorlu automation requirements
– Reduced additional device requirements thanks to rich interfaces, IO, PTI/PTO (up to 22kW), Internal ENCODER (up to 22 kW)
– Compatible with other optional altivar devices, to quickly notice the error with a double -colored Turkish graphics screen (suitable for assembly on the panel cover)
– Connection to the internet directly with the internal Webserver, which does not require any third party interface, can also change monitoring and parameters.
– FIRST INTERGRATION TO YOUR AUTOMATION SYSTEM WITH FDT AND DTM Technology
– Minimum activation time with automatic engine recognition feature
– Superiority against high levels of dust and vibration thanks to its robust design
– Working temperature is lossless
Between -10 …+50 ° C (loss up to 60 ° C)
– Internal Sto Safety Function, SIL3 Certified
– 5 digital inputs, 2 relay output, 1 analog input, 1 analog output – Internal A Class A EMC (RIF) filter
